About Our Gantry Castors and Crane Twin Fabricated Castors

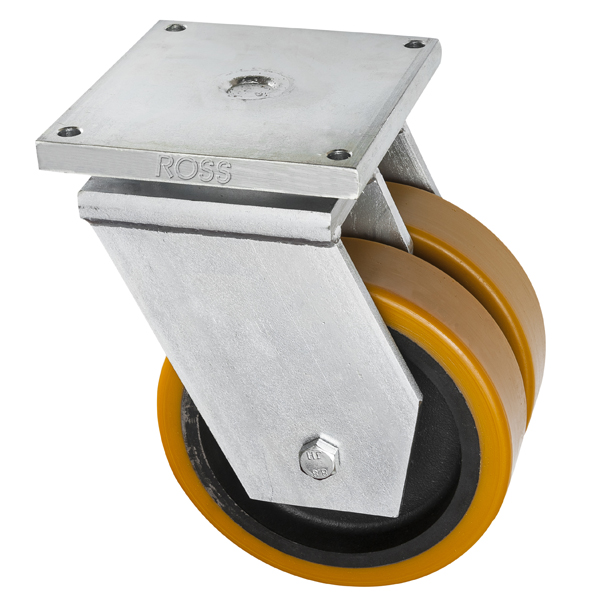

Our 8000 Series of extra heavy duty castors with a fabricated twin wheel are for extreme applications. These castors are thick plate steel,arc welded and chromatised for added corrosion protection. The swivel has a combination of shaft bearing and tapered roller bearing with a threaded king pin and safety locking nut. With castor load ratings from 1,100kg each up to 4 tonnes each, these... Read More
Loading...
Set Descending Direction
  1. Wheel series Z polyurethane wheel with cast iron centre, axial ball bearing and tapered roller bearing. Fabricated swivel fork in heavy gauge steel sheet. Dust cover disc in pressed steel with dust protection ring.
    G80 Swivel Top Plate Cast Iron Twin Castors with Brown Polyurethane

    Grouped product items
    Code (Click to View Product Specification) Wheel Diameter(mm) Load Capacity (kg) Plate Dimension Length (mm) Plate Dimension Width (mm) Quantity
    1 +
    Price
    Buy Quantity
    7470 100 600 135 110

    £88.70
    (excl VAT)

    7450 100 900 135 110

    £131.46
    (excl VAT)

    7471 125 800 200 160

    £173.92
    (excl VAT)

    7472 150 1000 200 160

    £180.07
    (excl VAT)

    7473 150 1400 200 160

    £188.77
    (excl VAT)

    7474 200 2000 255 205

    £246.56
    (excl VAT)

    7476 250 2800 255 205

    £372.14
    (excl VAT)

    7477 250 3500 255 205

    £767.47
    (excl VAT)

    7478 300 3500 255 205

    £555.89
    (excl VAT)

    7479 300 4500 255 205

    £1,075.12
    (excl VAT)

    7452 400 6200 255 205

    £1,746.37
    (excl VAT)

    Bulk Enquire For Best Price
  2. Wheel series Z polyurethane wheel with cast iron centre and fixed top plate, axial ball bearing and tapered roller bearing. Fabicatred in heavy gauge steel sheet. Dust cover disc in pressed steel with dust protection ring.
    G80 Fixed Top Plate Cast Iron Twin Castors with Brown Polyurethane

    Grouped product items
    Code (Click to View Product Specification) Wheel Diameter(mm) Load Capacity (kg) Plate Dimension Length (mm) Plate Dimension Width (mm) Quantity
    1 +
    Price
    Buy Quantity
    7480 100 600 135 110

    £55.82
    (excl VAT)

    7460 100 900 135 110

    £80.58
    (excl VAT)

    7481 125 800 200 160

    £120.33
    (excl VAT)

    7482 150 1000 200 160

    £126.48
    (excl VAT)

    7483 150 1400 200 160

    £134.14
    (excl VAT)

    7484 200 2000 255 205

    £217.18
    (excl VAT)

    7486 250 2800 255 205

    £277.18
    (excl VAT)

    7487 250 3500 255 245

    £457.87
    (excl VAT)

    7488 300 3500 255 205

    £398.94
    (excl VAT)

    7489 300 4500 310 255

    £766.86
    (excl VAT)

    7462 400 6200 340 255

    £1,329.64
    (excl VAT)

    Bulk Enquire For Best Price
  3. Wheel series P nylon wheel with an axial ball bearing and tapered roller bearing. Fabricated swivel fork in heavy gauge steel sheet. Dust cover disc in pressed steel with dust protection ring.
    LAG G80 Swivel Top Plate Heavy Gauge Nylon Castors

    Grouped product items
    Code (Click to View Product Specification) Wheel Diameter(mm) Load Capacity (kg) Plate Dimension Length (mm) Plate Dimension Width (mm) Quantity
    1 +
    Price
    Buy Quantity
    18552 100 900 135 110

    £103.00
    (excl VAT)

    18558 125 1400 200 160

    £149.08
    (excl VAT)

    18567 200 2000 255 205

    £233.62
    (excl VAT)

    18573 250 2800 255 205

    £281.12
    (excl VAT)

    Bulk Enquire For Best Price
  4. Wheel series P nylon wheel with a fixed top plate, axial ball bearing and tapered roller bearing. Fabricated in heavy gauge steel sheet. Dust cover disc in pressed steel with dust protection ring.
    LAG G80 Fixed Top Plate Heavy Gauge Nylon Castors

    Grouped product items
    Code (Click to View Product Specification) Wheel Diameter(mm) Load Capacity (kg) Plate Dimension Length (mm) Plate Dimension Width (mm) Quantity
    1 +
    Price
    Buy Quantity
    18627 100 900 135 110

    £64.28
    (excl VAT)

    18633 125 1400 200 160

    £100.09
    (excl VAT)

    18642 200 2000 255 205

    £147.82
    (excl VAT)

    18648 250 2800 255 205

    £186.16
    (excl VAT)

    Bulk Enquire For Best Price
  5. Gantry Castors Twin Wheel Fabricated Swivel Castors 8000 series

    Grouped product items
    Code (Click to View Product Specification) Wheel Diameter(mm) Load Capacity (kg) Plate Dimension Length (mm) Plate Dimension Width (mm) Quantity
    1 +
    Price
    Buy Quantity
    YGPEX 83 PE 200 2400 200 200

    £247.92
    (excl VAT)

    YGPEX 103 PE 250 2600 200 200

    £270.62
    (excl VAT)

    YGPEX 123 PE 300 2800 200 200

    £367.35
    (excl VAT)

    YGPEX 124 PE 300 3800 260 260

    £500.13
    (excl VAT)

    Bulk Enquire For Best Price
  6. Twin Wheel Fabricated Castors Wtith Brake 8000 series

    Grouped product items
    Code (Click to View Product Specification) Wheel Diameter(mm) Load Capacity (kg) Plate Dimension Length (mm) Plate Dimension Width (mm) Quantity
    1 +
    Price
    Buy Quantity
    YGPEX 83 PE FL 200 2400 200 200

    £249.87
    (excl VAT)

    YGPEX 103 PE FL 250 2600 200 200

    £272.59
    (excl VAT)

    YGPEX 123 PE FL 300 2800 200 200

    £371.70
    (excl VAT)

    YGPEX 124 PE FL 300 3800 260 260

    £439.74
    (excl VAT)

    Bulk Enquire For Best Price
  7. Heavy Duty Fabricated Castors Fixed Twin Wheel 8000 series

    Grouped product items
    Code (Click to View Product Specification) Wheel Diameter(mm) Load Capacity (kg) Plate Dimension Length (mm) Plate Dimension Width (mm) Quantity
    1 +
    Price
    Buy Quantity
    YFPEX 83 PE 200 2400 200 200

    £176.56
    (excl VAT)

    YFPEX 103 PE 250 2600 200 200

    £205.24
    (excl VAT)

    YFPEX 123 PE 300 2800 200 200

    £307.29
    (excl VAT)

    YFPEX 124 PE 300 3800 260 260

    £372.51
    (excl VAT)

    Bulk Enquire For Best Price
Set Descending Direction

About Our Gantry Castors and Crane Twin Fabricated Castors

Our 8000 Series of extra heavy duty castors with a fabricated twin wheel are for extreme applications. These castors are thick plate steel,arc welded and chromatised for added corrosion protection. The swivel has a combination of shaft bearing and tapered roller bearing with a threaded king pin and safety locking nut. With castor load ratings from 1,100kg each up to 4 tonnes each, these fabricated casters are the backbone for gantry's, cargo and docks, refineries, marine applications, containers and furnaces.This castor has a cast iron core with a bonded and extremely durable polyurethane wheel.
