Ball Skate with Adjustable Brake 1000kg Load Capacity
SKU
RHBB30–ROLLER
This heavy-duty ball skate appliance roller is designed for the controlled movement and precise positioning of extremely heavy loads. With a... Read Full Description
Ready for dispatch in 2-3 working days
£198.43
£165.36
CAD Request
Alternative Products
Description

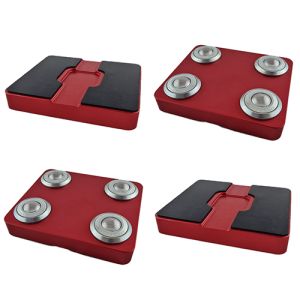

This heavy-duty ball skate appliance roller is designed for the controlled movement and precise positioning of extremely heavy loads. With a load capacity of up to 1000kg, it is ideal for machinery, equipment, cabinets, safes and industrial installations where smooth omnidirectional movement is required.
Equipped with four omnidirectional ball units, this ball skate allows effortless 360-degree movement, making it especially useful in confined spaces where traditional castors cannot manoeuvre easily. The robust steel construction ensures long-term durability, while the integrated adjustable brake system provides secure positioning once the load is in place.
Key Features & Specifications
General
-
Castor Type: Appliance Rollers / Ball Skate
-
Maximum Load Capacity: 1000 kg (2240 lbs)
-
Wheel / Ball Colour: Silver
-
Height: 43.8 mm
Dimensions
-
Overall Length: 175 mm
-
Overall Width: 152 mm
-
Overall Height: 43.8 mm
-
Ball Spacing: 82 mm (centre-to-centre)
Mounting Details
-
Square Mounting Plate: 92 mm × 92 mm
-
Inner Mounting Hole Pattern: 52 mm × 52 mm
-
Mounting Hole Diameter: 12.7 mm
-
Hub Bore: 12.7 mm
-
Fixing Type: Through counter-bored mounting holes
Brake System
-
Brake Type: Adjustable screw brake
-
Brake Diameter: 36 mm
-
Brake Pad: Rubber pad for secure load holding
Construction
-
Heavy-duty, reinforced body for industrial use
-
Designed to withstand high static and dynamic loads
-
Smooth rolling ball units for effortless positioning
Typical Applications
-
Heavy machinery movement
-
Appliance and equipment relocation
-
Industrial installation and maintenance
-
Workshop, factory and warehouse use
-
Load positioning in confined spaces
Why Choose Ross Handling
Ross Handling supplies reliable, heavy-duty movement solutions engineered for precision, safety and durability. This 1000kg ball skate is built to handle demanding industrial applications while offering excellent manoeuvrability and secure braking when positioning heavy loads.
Technical Details
 |
Appliance Rollers |
|---|---|
|
|
43.8 |
|
|
1000kg |
|
|
175 |
|
|
152 |
|
|
Silver |
|
|
12.7 |
