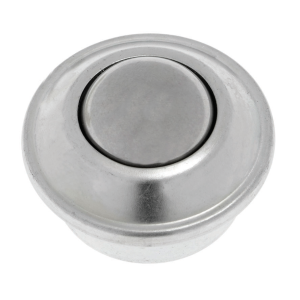

1007(1) Ball Transfer with a 1" Ball Upwards Facing Only
SKU
1007(1)
This 1″ upward-facing ball transfer is engineered to provide smooth omni-directional movement... Read Full Description
In Stock
£7.55
£6.29
- Price
- 1 + £7.55 £6.29
- 20 + £7.14 £5.95
- 50 + £6.74 £5.62
- 100 + £6.35 £5.29
CAD Request
Frequently bought together
Alternative Products
Description
This 1″ upward-facing ball transfer is engineered to provide smooth omni-directional movement and reliable upward load support in material handling applications. Featuring a 1″ (≈25 mm) steel ball with generous exposure, it allows effortless movement of goods in any direction across a surface — ideal for transfer tables, packing stations, conveyor feed areas and positioning workstations where products must be moved with minimal resistance.
Designed for upward-facing only applications, this ball transfer unit supports loads from above, offering dependable performance and longevity thanks to its robust steel construction. With a 55 kg upward load capacity, it is well-suited to light-to-medium duty handling tasks that benefit from reduced friction and easy multi-directional movement.
Key Features & Benefits
Upward-facing ball transfer for smooth, omni-directional movement of goods
1″ (≈25 mm) steel ball for strength, durability and consistent rolling
Ideal for transfer tables, packing areas and workstations requiring free movement
Supports up to 55 kg upward load capacity for light-to-medium handling
Reduces friction and effort, improving material flow and handling efficiency
Specifications
Castor Type: Ball Transfers
Ball Diameter: 1″ (≈25 mm) steel ball
Overall Diameter: 45.2 mm
Base Seated Hole Diameter: 35.5 mm
Upper Flange to Base Height: 12.7 mm
Ball Exposure: 7.9 mm
Working Height (Ball): 18.4 mm
Upward Load Capacity: 55 kg
Downward Load Capacity: 25 kg
Typical Applications
-
Transfer tables and packaging tables
-
Conveyor infeed/outfeed zones
-
Sorting and material handling stations
-
Workstations and positioning surfaces
-
Assembly line and packing line support
Why Choose Ross Handling
Ross Handling supplies dependable movement components engineered for smooth operation, durability and ease of installation. This 1″ upward-facing ball transfer delivers omni-directional movement and reliable load support, making it an excellent choice for light-to-medium duty material handling where reduced friction and efficient movement are key.
Technical Details
 |
Ball Transfers |
|---|---|
|
Ball Exposure |
7.9 |
|
Ball Transfer Diameter (mm) |
45.2 |
|
Base Seated Hole Diameter |
35.5 |
|
Upper Flange to Base |
12.7 |
|
|
Steel |
|
Working Height of Ball |
18.4 |
|
Upward Load Capacity (kg) |
55 |
|
Downward Load Capacity (kg) |
25 |
