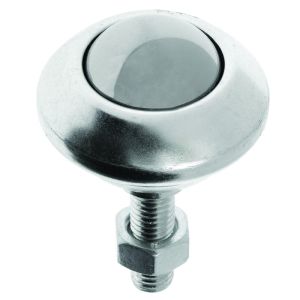

1009(1) Ball Transfer with a 1" Ball on an M8 thread
SKU
1009(1)
This 1″ ball transfer with an M8 threaded stem is engineered to provide smooth omni-directional... Read Full Description
In stock
£7.63
£6.36
- Price
- 1 + £7.63 £6.36
- 20 + £6.88 £5.73
- 50 + £6.43 £5.36
- 100 + £6.19 £5.16
CAD Request
Frequently bought together
Alternative Products
Description
This 1″ ball transfer with an M8 threaded stem is engineered to provide smooth omni-directional movement and reliable load support for material handling applications. Featuring a 1″ (≈25 mm) steel ball with generous exposure, it allows objects to glide effortlessly in any direction — perfect for transfer tables, packing lines, conveyor interfaces and work surfaces where low-friction movement boosts productivity.
The M8 × 25 mm stem enables secure, threaded installation into compatible frames or surfaces, creating a robust and dependable mounting point. With a 55 kg upward load capacity and 25 kg downward load capacity, this ball transfer unit supports moderate loads while maintaining consistent performance and durability for busy handling environments.
Key Features & Benefits
Omni-directional ball transfer for smooth multidirectional movement of goods and components
1″ (≈25 mm) precision steel ball for strength, wear resistance and reliable rolling
M8 × 25 mm threaded stem for secure, straightforward mounting
Supports up to 55 kg upward load capacity for medium handling loads
Helps reduce friction and effort on transfer tables, packaging lines and workstations
Specifications
Castor Type: Ball Transfers
Ball Diameter: 1″ (≈25 mm)
Ball Exposure: 6.3 mm
Stem Size: M8 × 25 mm
Material: Steel
Working Height of Ball: 32.5 mm
Upward Load Capacity: 55 kg
Downward Load Capacity: 25 kg
Typical Applications
-
Transfer and conveyor tables
-
Packing and sorting stations
-
Material handling surfaces
-
Assembly and inspection benches
-
Workstations where products need free movement
Why Choose Ross Handling
Ross Handling supplies dependable movement components engineered for smooth operation, durability and ease of installation. This 1″ ball transfer with M8 threaded stem delivers consistent omni-directional movement and secure mounting, making it a strong choice for material handling scenarios where reduced friction and controlled movement are essential.
Technical Details
 |
Ball Transfers |
|---|---|
|
Ball Exposure |
6.3 |
|
Ball Transfer Diameter (mm) |
39.7 |
|
|
M8X25 |
|
|
Steel |
|
Working Height of Ball |
32.5 |
|
Upward Load Capacity (kg) |
55 |
|
Downward Load Capacity (kg) |
25 |
Product Questions
FAQs
Got a question to ask?
Use this form to submit your question. Question will be displayed after moderation.
Question
Written by: Guy Analts
Do you have 3D STEP files or something similar that I can import into Solidworks please. I am designing a product that I want to incorporate these fittings into but need more detailed sizes etc. If no 3D models are available then a 2D drawing would be the next best thing please.
Answer
Of course, please check your email for the 3D datasheet.
