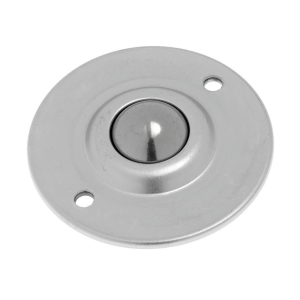

1000(1) Flange Fixing Type Ball Transfer with a 1" Ball
SKU
1000(1)
This 1″ flange fixing ball transfer is designed to provide smooth omnidirectional movement and... Read Full Description
In Stock
£6.96
£5.80
- Price
- 1 + £6.96 £5.80
- 20 + £6.55 £5.46
- 50 + £6.16 £5.13
- 100 + £5.77 £4.81
CAD Request
Frequently bought together
Alternative Products
Description
This 1″ flange fixing ball transfer is designed to provide smooth omnidirectional movement and reliable load support in light-to-medium-duty material handling applications. Featuring a 1″ (≈25 mm) diameter steel ball with generous exposure, it allows effortless movement of products in any direction — ideal for conveyors, transfer tables, packaging lines, sorting stations and other handling systems where components need to glide with minimal resistance.
The robust flange fixing design ensures secure installation into work surfaces or conveyor frames, while the steel construction delivers dependable performance and durability. With a 55 kg upward load capacity, this ball transfer unit supports moderate loads with stability and long-lasting functionality.
Key Features & Benefits
Omni-directional ball transfer for smooth multi-direction movement of goods and parts
1″ (≈25 mm) steel ball for strength, wear resistance and consistent rolling
Flange fixing with pre-drilled holes for secure, straightforward mounting
Supports up to 55 kg upward load capacity for light-to-medium handling tasks
Helps reduce friction and effort in conveyor, transfer or positioning applications
Specifications
Castor Type: Ball Transfers
Ball Diameter: 1″ (≈25 mm) steel ball
Overall Diameter: 73 mm
Base Seated Hole Diameter: 38.1 mm
Fixing Holes: 2 × 55.6 mm centres
Flange Thickness: 3.5 mm
Upper Flange to Base Height: 15.8 mm
Working Height (Ball): 14.2 mm
Upward Load Capacity: 55 kg
Downward Load Capacity: 25 kg
Typical Applications
-
Transfer and conveyor tables
-
Sorting and packaging lines
-
Material handling stations
-
Assembly and fixture movement systems
-
Light-to-medium weight product movement
Why Choose Ross Handling
Ross Handling supplies dependable movement components engineered for smooth operation, durability and ease of installation. This 1″ flange fixing ball transfer delivers reliable omni-directional motion and solid load support, making it an excellent choice for handling systems where reduced friction and efficient part movement are essential.
Technical Details
 |
Ball Transfers |
|---|---|
|
Ball Exposure |
6.3 |
|
Ball Transfer Diameter (mm) |
73 |
|
Base Seated Hole Diameter |
38.1 |
|
Fixing Holes |
2 x 55.6 |
|
Flange Thickness |
3.5 |
|
Upper Flange to Base |
15.8 |
|
|
Steel |
|
Working Height of Ball |
14.2 |
|
Upward Load Capacity (kg) |
55 |
|
Downward Load Capacity (kg) |
25 |
