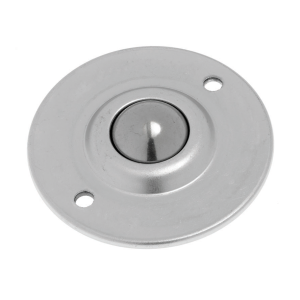

1000(3/4) Flange Fixing Ball Transfer with a 3/4" Ball
SKU
1000(3/4)
This 3 ⁄ 4″ flange fixing ball transfer is designed to provide smooth omnidirectional... Read Full Description
In Stock
£5.87
£4.89
- Price
- 1 + £5.87 £4.89
- 20 + £5.46 £4.55
- 50 + £5.04 £4.20
- 100 + £4.66 £3.88
CAD Request
Frequently bought together
Alternative Products
Description
This 3 ⁄ 4″ flange fixing ball transfer is designed to provide smooth omnidirectional movement and controlled load support in light-duty material handling applications. With a 3 ⁄ 4″ (≈19 mm) diameter steel ball, it allows effortless movement in any direction, making it ideal for conveyors, transfer tables, sorting stations and lightweight handling systems where products need to glide smoothly across surfaces.
Engineered with a flange fixing, this ball transfer unit is easily mounted into platforms and work surfaces, delivering consistent rolling performance. It offers a 25 kg upward load capacity, supporting light to moderate loads while ensuring reliable operation and reduced friction in multi-directional movement.
Key Features & Benefits
Omni-directional ball transfer for smooth movement of goods and components
3 ⁄ 4″ (≈19 mm) steel ball for strength and wear resistance
Flange fixing with holes for simple, secure mounting
Supports 25 kg upward load capacity for light-duty handling
Helps reduce friction and effort in conveyor or material transfer applications
Specifications
Castor Type: Ball Transfers
Ball Diameter: 3 ⁄ 4″ (≈19 mm) steel ball
Overall Diameter: 61 mm
Base Seated Hole Diameter: 30 mm
Fixing Holes: 2 × 44.5 mm centres
Flange Thickness: 3.2 mm
Upper Flange-to-Base Height: 12 mm
Working Height (Ball): 10 mm
Upward Load Capacity: 25 kg
Downward Load Capacity: 10 kg
Typical Applications
-
Transfer tables and conveyor tables
-
Sorting and material handling stations
-
Lightweight product movement systems
-
Packaging and assembly lines
-
Furniture or equipment parts needing free movement
Why Choose Ross Handling
Ross Handling supplies dependable movement components engineered for smooth operation, durability and ease of installation. This 3 ⁄ 4″ flange fixing ball transfer delivers reliable omni-directional movement and light-duty load support, making it an excellent choice for conveying, positioning and handling applications where reduced friction and fluid motion are key.
Technical Details
 |
Ball Transfers |
|---|---|
|
Ball Exposure |
3.2 |
|
Ball Transfer Diameter (mm) |
61 |
|
Base Seated Hole Diameter |
30 |
|
Fixing Holes |
2 x 44.5 |
|
Flange Thickness |
3.2 |
|
Upper Flange to Base |
12 |
|
|
Steel |
|
Working Height of Ball |
10 |
|
Upward Load Capacity (kg) |
25 |
|
Downward Load Capacity (kg) |
10 |
