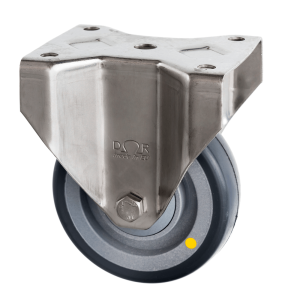

100mm Fixed Stainless Steel Castor Antistatic Rubber Wheel
SKU
SFL-100-ASR
This stainless-steel fixed castor is designed for smooth, electrostatic-safe rolling, floor... Read Full Description
In stock
£25.09
£20.91
- Price
- 1 + £25.09 £20.91
CAD Request
Frequently bought together
Alternative Products
Description
This stainless-steel fixed castor is designed for smooth, electrostatic-safe rolling, floor protection, and corrosion resistance in light-to-medium duty environments. Fitted with a 100 mm electrically conductive rubber wheel, it safely dissipates static electricity while providing quiet, cushioned movement — ideal for electronics assembly areas, laboratories, clean-rooms, medical facilities and commercial environments where static control matters.
With an 80 kg load capacity and roller bearing, this castor delivers efficient, low-friction performance and dependable straight-line movement. The A85 tread hardness ensures reliable grip and wear resistance, while the 30 mm tread width and 134 mm total height offer stable movement and compatibility with a range of stainless-steel equipment frames.
Constructed with stainless-steel housing and robust top plate, this castor provides strong corrosion resistance, making it suitable for hygienic or wash-down environments where durability and static safety are essential.
Key Features
-
Electrically conductive rubber wheel — ESD safe, ideal for static-sensitive environments
-
100 mm wheel diameter — smooth, cushioned rolling and excellent floor protection
-
Stainless-steel housing — corrosion-resistant, suitable for hygienic and moisture-exposed conditions
-
80 kg load capacity — dependable performance for light-to-medium duty equipment
-
Roller bearing — smooth, low-friction rotation under load
-
A85 tread hardness — balanced grip with resilient performance
-
30 mm tread width — stable rolling footprint
-
–20 °C to +60 °C operating range — versatile for most indoor environments
Specifications
-
Castor Type: Fixed, Top Plate
-
Bearing Type: Roller
-
Load Capacity: 80 kg
-
Max Load on 4 Castors: 240 kg
-
Wheel Diameter: 100 mm
-
Tread Width: 30 mm
-
Wheel Material: Electrically Conductive Rubber
-
Wheel Colour: Grey
-
Tread Hardness: A85
-
Temperature Range: –20 °C to +60 °C
-
Total Castor Height: 134 mm
-
Plate Length: 90 mm
-
Plate Width: 70 mm
-
Hole Centres (Length): 70 mm
-
Hole Centres (Width): 50 mm
-
Hole Diameter: 8 mm
-
Manufacturer Part Number: FSX7 HPC 100/30 P1 FA
-
Technical File: SFL-100-ASR.pdf
Applications
Ideal for use in:
-
Electronics assembly, ESD-friendly workstations and testing labs
-
Medical, laboratory and clean-room environments
-
Commercial fixtures and cabinets in static-sensitive areas
-
Retail and industrial setups requiring floor protection and static safety
-
Hygienic or wash-down installations where corrosion resistance is important
Why Choose Ross Handling
Ross Handling supplies high-quality stainless-steel castors engineered for smooth mobility, electrostatic safety and long-term reliability. This 100 mm fixed castor with an antistatic rubber wheel delivers ESD-safe performance, quiet rolling and corrosion-resistant construction, making it a dependable choice for static-critical, hygienic and indoor applications.
Technical Details
 |
Top Plate Castors |
|---|---|
|
|
Roller |
|
|
80 |
|
|
FSX7 HPC 100/30 P1 FA |
|
|
SFL-100-ASR.pdf |
|
|
30 |
|
|
-20 min to + 60 max |
|
|
A85 |
|
|
240 |
|
|
90 |
|
|
70 |
|
|
70 |
|
|
50 |
|
|
8 |
|
|
134 |
|
|
Grey |
|
|
100 |
|
|
Electrically Conductive Rubber |
