Gate Castor Heavy Duty Fixed 100mmGate Castor Heavy Duty Fixed 100mm
Move your mouse over image or click to enlarge
  • Image

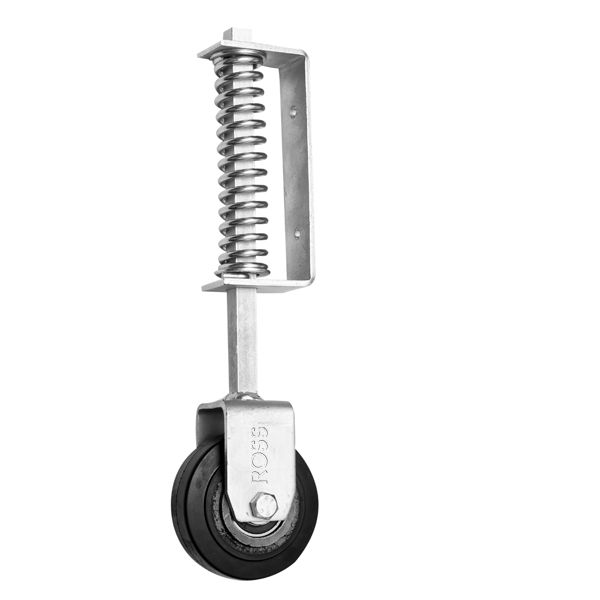

Gate Castor Heavy Duty Fixed 100mm


This Heavy Duty Gate Castor is designed to support a gate where there is some variation in the ground level and if the gate requires additional support. Generally spea... Read More

In Stock
£48.00 (excl. VAT) Incl. VAT: £57.60
1+ £48.00 (excl. VAT) £57.60

With this product, you earn 58 loyalty point(s). 58 points = £2.90.

Frequently bought together


This Heavy Duty Gate Castor is designed to support a gate where there is some variation in the ground level and if the gate requires additional support. Generally speaking attachment of the gate castor should be at the lowest ground level point, allowing the spring to compress as the gate moves over higher ground. This heavy duty gate castor is the best selling gate wheel as it has a fabricated steel body and a very heavy duty rubber wheel. ** Please Note ** Our newest range of Gate Castors have a ZINC PLATED FINISH and are the best all purpose gate castors on the market.

Technical Details

Colour Colour No
Load Capacity (kg) Load Capacity (kg) 70
Plate Dimension Length (mm) Plate Dimension Length (mm) 165
Plate Dimension Width (mm) Plate Dimension Width (mm) 41
Plate Hole Centres Length (mm) Plate Hole Centres Length (mm) 85
Plate Hole Centres Width (mm) Plate Hole Centres Width (mm) 20.5
Plate Hole Diameter Plate Hole Diameter 8
Product Type Product Type Gate Castors
Thread Material Thread Material No
Total Castor Height Total Castor Height 375
Total Height to Plate Lower Bolt Hole 242
Wheel Centre Wheel Centre Cast Iron
Wheel Colour Wheel Colour Black
Wheel Diameter(mm) Wheel Diameter(mm) 100
Wheel Material Wheel Material Rubber

Delivery & Returns


Delivery Charges


We have teamed up with FedEx and DPD Interlink to deliver our products nationally and worldwide. Our trackable consignments, and signed for service ensures the order gets to you in the required time, hassle free.

As our products can be bulky we have a variety of delivery charges based upon the weight of your overall order. You will be shown delivery options at the checkout. For a more detailed view of our delivery charges please visit our Delivery and Returns page

You can order online quickly and easily for both UK and EU destination, and your delivery charge will be shown to you at checkout. If your order exceeds our weight for online orders you will be asked to contact us directly to get a pallet delivery quote.


ServiceWeight - (kg's)Cost £'s

Collection In Person



Sack Trucks Trolleys and Steps



2 Day - Express Pack Light

Up to 1kg


2 Day Express Pack Medium

Up to 4kg


Next Working Day Service

Up to 25kg


2 Day - Standard Service

4kg to 25kg


Next Day - Pre 12pm

Up to 25kg


Next Day - Pre 10.30am

Up to 25kg


Saturday - Delivery  Service

Up to 25kg


Highlands and Islands

Up to 25kg

From £13.00 - £40.00

Northern & Southern Ireland

Up to 50kg

£13.00 - £39.00

Inside EU

Up to 60kg

From €14 - €68

Outside EU

Up to 60kg

Contact us for a Quote



Returns and Refunds

We have a no quibble returns and refund policy. You have 7 days to return any item for a full refund or exchange, provided it is in its original, unused, saleable condition and repackaged in original packaging.

To return goods simply download this Returns form

Returns charges are not covered by the Company, unless the goods are faulty. If the goods are faulty please call our Customer Services on 0116 2764987 or 00 44 116 2764987

For Returns of Sack Trucks, Trolleys and Mobile Steps please refer to our detailed Terms and Conditions


Got a Question to Ask?

Use this form to submit your question. Question will be displayed after moderation

Question Written by: mike Paget . May 13th 2018
Is it possible to turn the wheel through 90 deg it look as if it can possibly remove split pin at the bottom of the spring the remove the shaft turn the shaft compress the spring and replace the split pin
Answer Written by: Ross Handling
Hi Mike,

Yes you can remove the side mount frame (with the 2 fixings holes) 90 degree (so the wheel is facing a different direction).

Please contact our sales team on 0116 2764987 should you require any further help.

Was this answer helpful?
Question Written by: Alan Rowley . December 27th 2018
How much spring compression is there please as I have a quite a slope on my drive from gate closed to gate open
Answer Written by: Ross Handling
Hi Alan

there is a 3 inch travel to fully compress the spring fitted into the Heavy Duty Gate castors. The spring compression is rated at 70kg.

Please do get in touch if you need any further assistance as i will be happy to help.


Tim tim@rosshandling.co.uk 01162764987
Was this answer helpful?
Question Written by: Sam . February 14th 2021
Is it possible for me to re assemble the "Gate Castor Heavy Duty Fixed" so that the mounting bracket is rotated 90°, I am considering using them for a sliding gate setup.
Answer Written by: Ross Handling

Yes you can change the position of the side mounted bracket (unscrews from the top of the Gate Castor frame).

Kind Regards,
Was this answer helpful?
