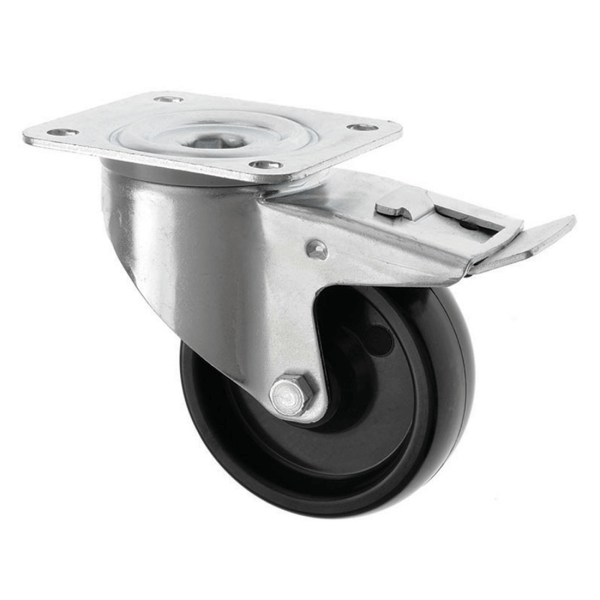

100mm High Temp Castors with Brake & Phenolic Resin Wheel
SKU
100-3360-TH/SWB
This 100 mm high temperature swivel braked castor with phenolic resin wheel is designed for... Read Full Description
In stock
£24.66
£20.55
- Price
- 1 + £24.66 £20.55
CAD Request
Frequently bought together
Alternative Products
Description
This 100 mm high temperature swivel braked castor with phenolic resin wheel is designed for heat-intensive environments where controlled manoeuvrability, secure braking and reliable performance at extreme temperatures are required. The swivel action allows smooth directional changes, while the integrated brake locks both the wheel and swivel head to keep equipment stable when stationary.
With a load capacity of 125 kg per castor, this model is well suited to bakery racks, ovens, food processing equipment and industrial heat applications. The plain bearing construction is ideal for elevated temperatures, offering dependable performance with minimal mechanical complexity.
The high temperature phenolic wheel is engineered to operate in demanding thermal conditions, with an operating temperature range from –40°C to +280°C. Featuring a D85 tread hardness, the wheel provides excellent load resistance, dimensional stability and low rolling resistance under heat. The 100 mm wheel diameter improves rolling efficiency over thresholds and uneven surfaces, while the 128 mm overall height maintains equipment stability. A robust top plate fixing ensures secure installation in high-temperature environments.
Key Features
-
Swivel castor with brake – Manoeuvrability with secure locking
-
High temperature phenolic wheel – Designed for extreme heat applications
-
Operating temperature range –40°C to +280°C – Suitable for ovens and hot processes
-
100 mm wheel diameter – Smooth and efficient rolling
-
125 kg load capacity per castor – Reliable support under load
-
Plain bearing – Simple, heat-resistant construction
-
D85 tread hardness – Strong, rigid and wear resistant
-
Top plate fixing – Secure and stable mounting
Specifications
-
Castor Type: Swivel Braked, Top Plate
-
Bearing Type: Plain
-
Load Capacity: 125 kg per castor
-
Max Load Capacity of 4 Castors: 375 kg
-
Wheel Diameter: 100 mm
-
Tread Width: 35 mm
-
Wheel Material: High Temperature Phenolic
-
Wheel Colour: Black
-
Tread Hardness: D85
-
Temperature Range: –40°C to +280°C
-
Total Castor Height: 128 mm
-
Swivel Radius: 125 mm
-
Plate Length: 105 mm
-
Plate Width: 85 mm
-
Plate Hole Centres: 80 × 60 mm
-
Plate Hole Diameter: 8 mm
Applications
Commonly used for:
-
Bakery ovens and racks
-
Food processing and catering equipment
-
Autoclaves and sterilisation units
-
Industrial heat treatment environments
-
Applications requiring castors resistant to extreme temperatures
Why Choose Ross Handling
Ross Handling supplies a carefully selected range of specialist castors engineered for challenging industrial environments, including high-temperature applications. Products are chosen for durability, reliability and consistent performance.
This 100 mm high temperature swivel braked castor with phenolic wheel delivers secure braking, excellent heat resistance and dependable load support, making it a practical choice for demanding thermal environments.
Technical Details
 |
Top Plate Castors |
|---|---|
|
|
Plain |
|
|
125 |
|
|
TSZ7 TSG 100 P2 BP |
|
|
100-3360-TH-SWB_1.pdf |
|
|
35 |
|
|
-40 min to + 280 max |
|
|
D85 |
|
|
375 |
|
|
105 |
|
|
85 |
|
|
80 |
|
|
60 |
|
|
8 |
|
|
125 |
|
|
128 |
|
|
Black |
|
|
100 |
|
|
High Temperature Phenolic |
