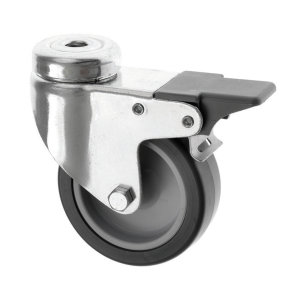

100mm M10 Bolt Hole Braked Castors Grey Rubber Wheel
SKU
100-310-R/SWB
This 100 mm swivel bolt hole braked castor with grey rubber wheel is designed for light- to medium-duty applications where smooth... Read Full Description
In stock
£8.72
£7.27
- Price
- 1 + £8.72 £7.27
- 20 + £7.96 £6.63
- 50 + £7.18 £5.98
- 100 + £6.65 £5.54
CAD Request
Frequently bought together
Alternative Products
Description
This 100 mm swivel bolt hole braked castor with grey rubber wheel is designed for light- to medium-duty applications where smooth manoeuvrability, quiet operation and secure locking are required. The swivel action allows easy directional changes, while the integrated brake provides positive locking to keep equipment firmly in position when stationary.
With a load capacity of 80 kg per castor, this model is suitable for mobile furniture, light trolleys, display units and general-purpose equipment. The plain bearing construction offers reliable swivel movement with minimal maintenance, making it a practical and cost-effective solution for everyday indoor use.
The rubber on polypropylene wheel provides quiet rolling, vibration reduction and effective floor protection. The 100 mm wheel diameter improves rolling performance and obstacle clearance, while the 122 mm total castor height offers useful clearance without excessively increasing overall equipment height. The M10 bolt hole fixing allows secure central mounting for quick and straightforward installation.
Key Features
-
Swivel castor with brake – Easy manoeuvrability with secure locking
-
Bolt hole fixing (M10) – Simple, secure central mounting
-
100 mm wheel diameter – Improved rolling performance and obstacle clearance
-
80 kg load capacity per castor – Suitable for light to medium duty use
-
Grey rubber wheel – Quiet operation and floor protection
-
Rubber on polypropylene construction – Durable and shock absorbing
-
Plain bearing – Simple, low-maintenance design
-
Stable overall height – Suitable for a wide range of indoor applications
Specifications
-
Castor Type: Swivel Braked, Bolt Hole
-
Bearing Type: Plain
-
Load Capacity: 80 kg per castor
-
Max Load Capacity of 4 Castors: 240 kg
-
Wheel Diameter: 100 mm
-
Tread Width: 24 mm
-
Wheel Material: Rubber on Polypropylene
-
Wheel Colour: Grey
-
Total Castor Height: 122 mm
-
Swivel Radius: 97 mm
-
Bolt Hole Size: 10 mm (M10)
Applications
Commonly used for:
-
Mobile furniture and cabinets
-
Light- to medium-duty trolleys
-
Display units and shop fittings
-
Equipment housings and stands
-
Indoor applications requiring quiet movement with secure braking
Why Choose Ross Handling
Ross Handling supplies a carefully selected range of castors and wheels chosen for durability, ease of installation and dependable performance. Products are sourced from trusted manufacturers to meet the practical demands of commercial and industrial environments.
This 100 mm swivel bolt hole braked castor with grey rubber wheel offers quiet rolling, reliable manoeuvrability and secure locking, making it a dependable solution for light- to medium-duty indoor applications.
Technical Details
 |
Bolt Hole Castors |
|---|---|
|
|
Plain |
|
|
80 |
|
|
100-310-R-SWB_1.pdf |
|
|
24 |
|
|
10 |
|
|
240 |
|
|
97 |
|
|
122 |
|
|
Grey |
|
|
100 |
|
|
Rubber on Polypropylene |
