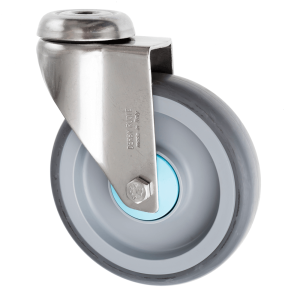

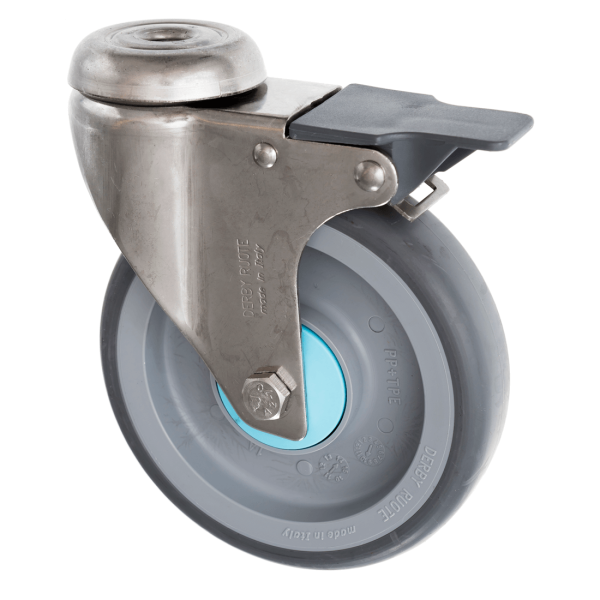

100mm Bolt Hole Thermoplastic Rubber Castors with Brake
SKU
SSL-100-TPR/SWB/BH12
* WHEEL CENTRE IS FITTED WITH LIGHT BLUE CAP *
This 100 mm stainless steel swivel bolt hole castor with brake... Read Full Description
In stock
£26.64
£22.20
- Price
- 1 + £26.64 £22.20
CAD Request
Frequently bought together
Description
* WHEEL CENTRE IS FITTED WITH LIGHT BLUE CAP *
This 100 mm stainless steel swivel bolt hole castor with brake is designed for smooth manoeuvrability, quiet operation, and secure positioning in light to medium-duty environments. The bolt hole fixing allows fast, central installation, while the integrated brake ensures reliable locking when equipment must remain stationary.
Fitted with a 100 mm grey thermoplastic rubber wheel on a polypropylene core, this castor delivers excellent shock absorption, low rolling resistance, and effective floor protection. The A85 hardness tread provides a strong balance between grip and durability, making it ideal for use on sensitive or finished floors.
With an 80 kg load capacity per castor and a plain bearing design, this model offers a robust, low-maintenance solution for frequently moved equipment. The 30 mm tread width, 134 mm total height, and 106 mm swivel radius ensure controlled, stable movement with dependable braking performance.
Key Features
-
100 mm thermoplastic rubber wheel — quiet running with excellent floor protection
-
Integrated brake — secure locking for safety and stability
-
Bolt hole mounting (12 mm) — compact, central fixing solution
-
Stainless steel housing — corrosion-resistant and durable
-
80 kg load capacity per castor — suitable for light to medium-duty use
-
Plain bearing — simple, robust and low maintenance
-
A85 tread hardness — effective shock absorption and grip
-
–20 °C to +60 °C operating range — ideal for indoor environments
Specifications
-
Castor Type: Swivel Braked, Bolt Hole
-
Bearing Type: Plain
-
Load Capacity: 80 kg
-
Max Load on 4 Castors: 240 kg
-
Wheel Diameter: 100 mm
-
Tread Width: 30 mm
-
Wheel Material: Rubber on Polypropylene
-
Wheel Colour: Grey
-
Tread Hardness: A85
-
Temperature Range: –20 °C to +60 °C
-
Total Castor Height: 134 mm
-
Swivel Radius: 106 mm
-
Bolt Hole Size: 12 mm
-
Manufacturer Part No.: FSX7 MGO 100/30 F0-12 BP
Applications
Ideal for use in:
-
Light to medium-duty trolleys and carts
-
Catering and service equipment
-
Medical and laboratory furniture
-
Retail fixtures and mobile units
-
Applications requiring quiet rolling, compact mounting and secure braking
Why Choose Ross Handling
Ross Handling supplies high-quality stainless steel castors built for reliability, smooth performance and corrosion resistance. This 100 mm swivel braked bolt hole castor combines quiet operation, secure braking and easy installation, making it a dependable choice for everyday mobile equipment
Technical Details
 |
Bolt Hole Castors |
|---|---|
|
|
Plain |
|
|
80 |
|
|
FSX7 MGO 100/30 F0-12 BP |
|
|
SSL-100-TPR-SWB-BH12.pdf |
|
|
30 |
|
|
-20 min to + 60 max |
|
|
12 |
|
|
A85 |
|
|
240 |
|
|
106 |
|
|
134 |
|
|
Grey |
|
|
100 |
|
|
Rubber on Polypropylene |
