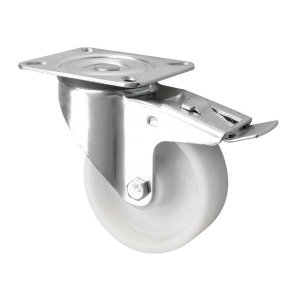

100mm Swivel Braked Castors Nylon Wheel
SKU
100-3360-NYB/SWB 150kg
This 100 mm swivel braked castor with nylon wheel is designed for Read Full Description
In stock
£11.80
£9.83
- Price
- 1 + £11.80 £9.83
CAD Request
Frequently bought together
Alternative Products
Description
This 100 mm swivel braked castor with nylon wheel is designed for light- to medium-duty handling applications where smooth manoeuvrability, secure braking and hard-wearing performance are required. The swivel action allows easy changes in direction, while the integrated brake locks both the wheel and swivel head to stabilise equipment when stationary.
With a load capacity of 150 kg per castor, this model is suitable for trolleys, mobile equipment and workplace fixtures. The bearing wheel construction supports smooth rolling under load and dependable performance in everyday handling tasks.
The white nylon wheel features a hard, wear-resistant tread that offers excellent load support and low rolling resistance on smooth surfaces. With a tread hardness of D75 and an operating temperature range of –20°C to +60°C, this castor performs reliably in dry indoor environments. The 100 mm wheel diameter improves rolling efficiency compared to smaller sizes, while the 128 mm overall height provides solid support without excessive lift. A robust top plate fixing ensures secure and straightforward installation.
Key Features
-
Swivel castor with brake – Manoeuvrability with secure locking
-
Top plate fixing – Strong and stable mounting
-
100 mm wheel diameter – Improved rolling efficiency
-
150 kg load capacity per castor – Suitable for light- to medium-duty use
-
White nylon wheel – Hard-wearing and low rolling resistance
-
Bearing wheel construction – Smooth rolling performance
-
High tread hardness (D75) – Excellent wear resistance
-
Operating temperature range: –20°C to +60°C
Specifications
-
Castor Type: Swivel Braked, Top Plate
-
Bearing Type: Bearing
-
Load Capacity: 150 kg per castor
-
Max Load Capacity of 4 Castors: 450 kg
-
Wheel Diameter: 100 mm
-
Tread Width: 34 mm
-
Wheel Material: Nylon
-
Wheel Colour: White
-
Tread Hardness: D75
-
Temperature Range: –20°C to +60°C
-
Total Castor Height: 128 mm
-
Swivel Radius: 123 mm
-
Plate Length: 105 mm
-
Plate Width: 85 mm
-
Plate Hole Centres: 80 × 60 mm
-
Plate Hole Diameter: 8 mm
Applications
Commonly used for:
-
Workshop and industrial trolleys
-
Mobile equipment and machinery bases
-
Handling carts and transport units
-
Dry indoor commercial environments
-
Applications requiring secure braking and hard-wearing wheels
Why Choose Ross Handling
Ross Handling supplies a carefully selected range of castors and wheels known for strength, durability and reliable performance. Products are chosen to meet the practical demands of commercial and industrial users.
This 100 mm swivel braked castor with nylon wheel offers secure braking, smooth rolling and excellent wear resistance, making it a dependable choice for everyday handling applications.
Technical Details
 |
Top Plate Castors |
|---|---|
|
|
Bearing |
|
|
150 |
|
|
100-3360-NYB-SWB 150kg.pdf |
|
|
34 |
|
|
-20 min to +60 max |
|
|
D75 |
|
|
450 |
|
|
105 |
|
|
85 |
|
|
80 |
|
|
60 |
|
|
8 |
|
|
123 |
|
|
128 |
|
|
White |
|
|
100 |
|
|
Nylon |
