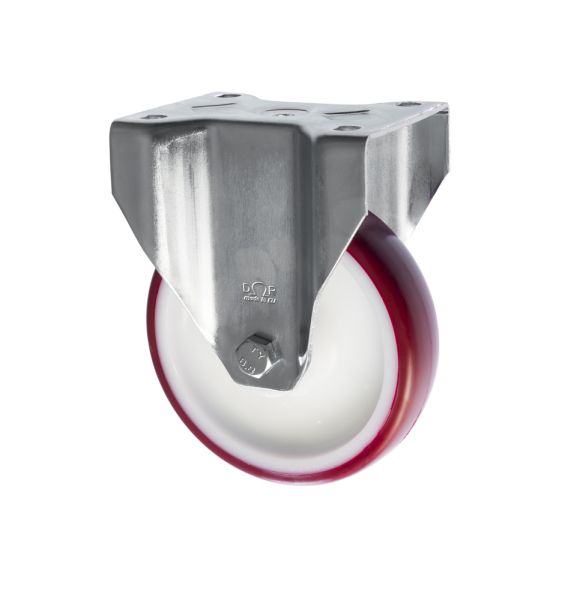

125mm Fixed Castors Polyurethane Wheel 140 x 110 Large Plate
SKU
125-3368-PNB L/P
This 125 mm fixed castor with large top plate and Read Full Description
In Stock
£15.52
£12.93
- Price
- 1 + £15.52 £12.93
CAD Request
Alternative Products
Description
This 125 mm fixed castor with large top plate and polyurethane wheel is designed for heavy-duty handling applications where maximum straight-line stability, high load capacity and enhanced mounting strength are required. The fixed housing keeps equipment tracking in one direction, while the larger mounting plate improves load distribution and fixing security on heavier frames.
With a load capacity of 300 kg per castor, this model is well suited to industrial trolleys, heavy equipment bases and mobile machinery. The roller bearing construction ensures smooth, low-resistance rolling under load and supports reliable performance during continuous use.
The maroon polyurethane wheel features a hard, high-load tread engineered for excellent durability and low rolling resistance. With a tread hardness of 95 Shore A and an operating temperature range of –40°C to +80°C, this castor performs reliably in demanding environments subject to temperature variation. The 125 mm wheel diameter improves rolling efficiency over joints and uneven floors, while the 200 mm overall height provides strong support without compromising stability. The large top plate fixing ensures a secure, rigid installation for heavy-duty applications.
Key Features
-
Fixed castor – Straight-line movement and stable tracking
-
Large top plate fixing – Increased stability and improved load distribution
-
125 mm wheel diameter – Efficient rolling under heavy loads
-
300 kg load capacity per castor – Suitable for heavy-duty use
-
Maroon polyurethane wheel – Hard-wearing and high load rated
-
Polyurethane on nylon construction – High strength and low rolling resistance
-
Roller bearing – Smooth rolling under load
-
Wide temperature range: –40°C to +80°C
Specifications
-
Castor Type: Fixed, Large Plate
-
Bearing Type: Roller
-
Load Capacity: 300 kg per castor
-
Max Load Capacity of 4 Castors: 900 kg
-
Wheel Diameter: 125 mm
-
Tread Width: 40 mm
-
Wheel Material: Polyurethane on Nylon
-
Wheel Colour: Maroon
-
Tread Hardness: 95 Shore A
-
Temperature Range: –40°C to +80°C
-
Total Castor Height: 200 mm
-
Plate Length: 140 mm
-
Plate Width: 110 mm
-
Plate Hole Centres: 105 × 80 / 75 mm
-
Plate Hole Diameter: 10 mm
Applications
Commonly used for:
-
Heavy-duty industrial trolleys
-
Large mobile machinery and equipment bases
-
Manufacturing and warehouse handling units
-
Commercial and industrial environments
-
Applications requiring enhanced mounting strength
Why Choose Ross Handling
Ross Handling supplies a carefully selected range of castors and wheels known for strength, durability and consistent performance. Products are chosen to meet the practical demands of commercial and industrial users.
This 125 mm fixed castor with large plate and high-load polyurethane wheel delivers exceptional stability, high load capacity and excellent temperature resistance, making it a dependable solution for demanding heavy-duty handling applications.
Technical Details
 |
Top Plate Castors |
|---|---|
|
|
Roller |
|
|
300 |
|
|
TSZ7 NPR 125/40 P3 FA |
|
|
40 |
|
|
-40 min to +80 max |
|
|
95 Shore A |
|
|
900 |
|
|
140 |
|
|
110 |
|
|
105 |
|
|
80/75 |
|
|
10 |
|
|
200 |
|
|
Maroon |
|
|
125 |
|
|
Polyurethane on Nylon |
