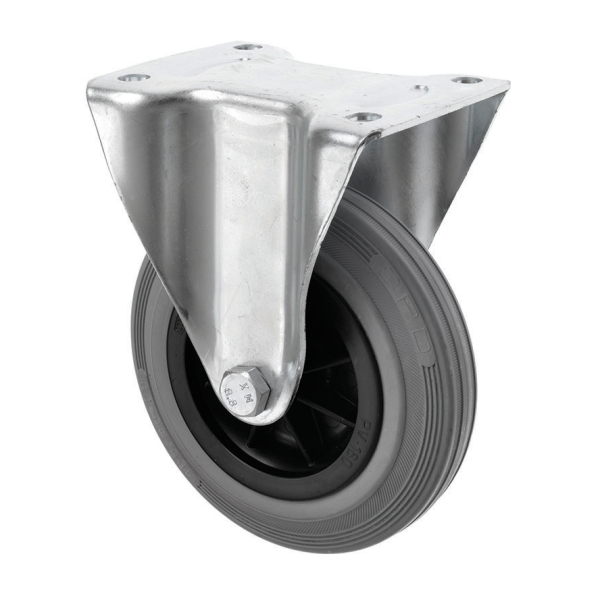

125mm Grey Rubber Wheel Fixed Castor
SKU
125-3368-GVR
This 125 mm fixed castor with grey rubber wheel is designed for applications requiring stable, straight-line movement with dependable load... Read Full Description
In stock
£9.67
£8.06
- Price
- 1 + £9.67 £8.06
CAD Request
Frequently bought together
Alternative Products
Description
This 125 mm fixed castor with grey rubber wheel is designed for applications requiring stable, straight-line movement with dependable load support and smooth rolling performance. The fixed housing ensures equipment remains tracking in a single direction, making it suitable for trolleys, mobile workstations and material handling units where controlled movement is essential.
With a load capacity of 100 kg per castor, this model is well suited to light- and medium-duty industrial and commercial environments. The roller bearing construction delivers smooth rolling under load while reducing friction and wear during regular use. With a maximum combined load capacity of 300 kg across four castors, it provides reliable support for a variety of equipment and platforms.
The rubber on polypropylene wheel offers effective shock absorption, quiet operation and good floor protection. With a tread hardness of A80 and an operating temperature range of –20°C to +80°C, this castor performs reliably across a wide range of indoor and light industrial conditions. The 125 mm wheel diameter improves rolling efficiency and obstacle clearance, while the 155 mm total castor height provides additional ground clearance without compromising stability. A robust top plate fixing ensures secure and straightforward installation.
Key Features
-
Fixed castor – Stable, straight-line movement
-
Top plate fixing – Secure and robust mounting
-
125 mm wheel diameter – Superior rolling efficiency and clearance
-
100 kg load capacity per castor – Suitable for light to medium duty use
-
Grey rubber wheel – Quiet operation and floor protection
-
Rubber on polypropylene construction – Durable and shock absorbing
-
Roller bearing – Smooth rolling under load
-
Wide operating temperature range – –20°C to +80°C
Specifications
-
Castor Type: Fixed, Top Plate
-
Bearing Type: Roller
-
Load Capacity: 100 kg per castor
-
Max Load Capacity of 4 Castors: 300 kg
-
Wheel Diameter: 125 mm
-
Tread Width: 23 mm
-
Wheel Material: Rubber on Polypropylene
-
Wheel Colour: Grey
-
Tread Hardness: A80
-
Temperature Range: –20°C to +80°C
-
Total Castor Height: 155 mm
-
Plate Length: 101 mm
-
Plate Width: 85 mm
-
Plate Hole Centres: 80 / 77 × 60 mm
-
Plate Hole Diameter: 8 mm
Applications
Commonly used for:
-
Industrial and workshop trolleys
-
Mobile workstations and equipment
-
Handling carts and storage units
-
Material handling applications
-
Indoor environments requiring reliable straight-line movement
Why Choose Ross Handling
Ross Handling supplies a carefully selected range of castors and wheels chosen for strength, durability and dependable performance. Products are sourced from trusted manufacturers to meet the practical demands of commercial and industrial environments.
This 125 mm fixed castor with grey rubber wheel offers smooth rolling performance, reliable load support and stable directional movement, making it a dependable solution for light- to medium-duty industrial use.
Technical Details
 |
Top Plate Castors |
|---|---|
|
|
Roller |
|
|
100 |
|
|
125-3368-GVR_1.pdf |
|
|
23 |
|
|
-20 min to +80 max |
|
|
A80 |
|
|
300 |
|
|
101 |
|
|
85 |
|
|
80/77 |
|
|
60 |
|
|
8 |
|
|
155 |
|
|
Grey |
|
|
125 |
|
|
Rubber on Polypropylene |
