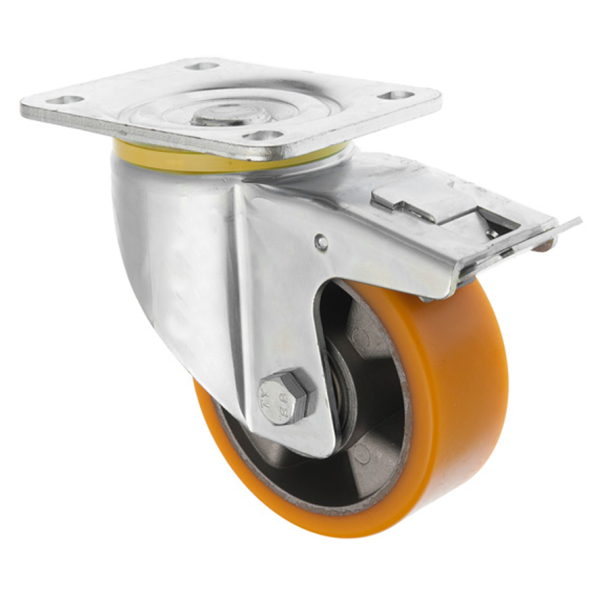

125mm Heavy Duty Castors with Brake Polyurethane Wheel
SKU
125-5000-PAL/SWB
This 125 mm heavy-duty swivel braked castor with polyurethane on aluminium wheel is engineered... Read Full Description
In stock
£60.23
£50.19
CAD Request
Frequently bought together
Alternative Products
Description
This 125 mm heavy-duty swivel braked castor with polyurethane on aluminium wheel is engineered for industrial applications where high load capacity, controlled manoeuvrability and secure braking are essential. The swivel head allows smooth directional changes, while the integrated brake locks the wheel and swivel action to help stabilise equipment when stationary.
With a load capacity of 500 kg per castor, it’s well suited to industrial trolleys, machinery bases, handling carts and production platforms, delivering reliable performance under demanding conditions. The ball journal swivel bearing provides smooth, low-resistance rotation under load, contributing to consistent performance and long service life.
The polyurethane on aluminium wheel combines a lightweight aluminium core with a durable polyurethane tread, offering excellent load support, vibration reduction and floor protection. The 50 mm tread width and A92 Shore hardness provide a resilient running surface that balances durability, grip and quieter operation. Designed for use within a temperature range of –20 °C to +60 °C, this castor performs reliably across a wide range of indoor industrial settings.
A large top plate fixing (140 × 110 mm) with 105 × 80/75 mm hole centres ensures secure mounting and effective load distribution for heavy-duty installations requiring controlled movement and braking support.
Key Features
-
Heavy-duty swivel braked castor – Controlled movement with secure braking
-
500 kg load capacity per castor – Suitable for demanding industrial use
-
Polyurethane on aluminium wheel – Durable and floor-friendly tread
-
125 mm wheel diameter – Smooth rolling under load
-
50 mm tread width – Enhanced stability and floor contact
-
Ball journal swivel bearing – Reliable, smooth rotation
-
Large top plate fixing – Secure mount for heavy equipment
-
Operating temperature range: –20 °C to +60 °C
Specifications
-
Castor Type: Swivel Braked, Top Plate
-
Load Capacity: 500 kg per castor
-
Max Load Capacity of 4 Castors: 1500 kg
-
Wheel Diameter: 125 mm
-
Tread Width: 50 mm
-
Wheel Material: Polyurethane on Aluminium
-
Wheel Colour: Yellow
-
Tread Hardness: A92 Shore
-
Bearing Type: Ball Journal (Swivel Head)
-
Temperature Range: –20 °C to +60 °C
-
Total Castor Height: 164 mm
-
Swivel Radius: 148 mm
-
Plate Length: 140 mm
-
Plate Width: 110 mm
-
Plate Hole Centres: 105 × 80/75 mm
-
Plate Hole Diameter: 10 mm
Applications
Commonly used for:
-
Heavy-duty industrial trolleys and carts
-
Machinery bases and equipment platforms
-
Material handling and transport systems
-
Manufacturing and assembly equipment
-
Applications requiring secure braking with reliable load support
Why Choose Ross Handling
Ross Handling supplies a carefully selected range of heavy-duty castors engineered for strength, durability and dependable performance in industrial environments. Products are chosen to meet the practical demands of commercial, manufacturing and logistics users.
This 125 mm heavy-duty swivel braked castor with polyurethane on aluminium wheel delivers excellent load capacity, controlled manoeuvrability and secure braking, making it a dependable choice for demanding industrial handling applications.
Technical Details
 |
Top Plate Castors |
|---|---|
|
|
Ball Journal |
|
|
500 |
|
|
125-5000-PAL-SWB_1.pdf |
|
|
50 |
|
|
-20 min to + 60 max |
|
|
A92 |
|
|
1500 |
|
|
140 |
|
|
110 |
|
|
105 |
|
|
80/75 |
|
|
10 |
|
|
148 |
|
|
164 |
|
|
Yellow |
|
|
125 |
|
|
Polyurethane on Aluminium |
Product Questions
FAQs
Got a question to ask?
Use this form to submit your question. Question will be displayed after moderation.
Question
Written by: Mark Goodwin
Do you have a downloadable model of any of your castors ? I'm ideally looking for 125-5000-PAL/SWB so that I can add it into a Catia Assembly.
