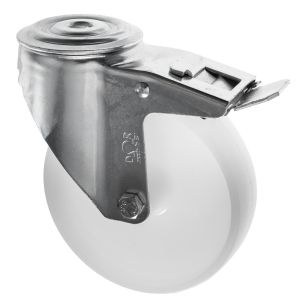

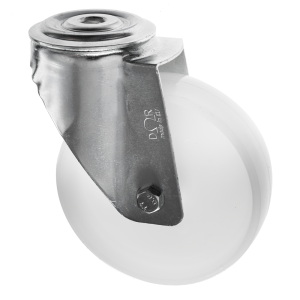

125mm Swivel Bolt Hole Castor Nylon Wheel
SKU
125-4000-NY
This 125mm swivel bolt hole castor is designed for smooth, controlled movement in demanding industrial and commercial environments. With a load capacity... Read Full Description
In stock
£14.38
£11.98
- Price
- 1 + £14.38 £11.98
CAD Request
Frequently bought together
Alternative Products
Description
This 125mm swivel bolt hole castor is designed for smooth, controlled movement in demanding industrial and commercial environments. With a load capacity of up to 150 kg per castor, it is ideal for trolleys, carts and mobile equipment where strength and reliable manoeuvrability are essential.
Equipped with a hard-wearing nylon wheel, this castor delivers excellent resistance to wear, impact and chemicals while performing consistently across a broad temperature range from -40°C to +80°C. The swivel head allows precise directional control, and the bolt hole fixing provides a secure and straightforward mounting solution.
Key Features & Specifications
General
-
Castor Type: Swivel Bolt Hole Castor
-
Bearing Type: Plain
-
Maximum Load Capacity (per castor): 150 kg
-
Maximum Load Capacity (4 castors): 450 kg
-
Colour: White
Wheel Details
-
Wheel Diameter: 125 mm
-
Tread Width: 38 mm
-
Wheel Material: Nylon
-
Tread Hardness: D75
Dimensions & Mounting
-
Total Castor Height: 157 mm
-
Swivel Radius: 100 mm
-
Bolt Hole Diameter: 12 mm
Performance
-
Temperature Range: -40°C to +80°C
-
Low rolling resistance with long service life
Typical Applications
-
Industrial and warehouse trolleys
-
Mobile equipment and carts
-
Workshop machinery
-
Commercial handling systems
Why Choose Ross Handling
Ross Handling supplies high-quality castor solutions engineered for durability, strength and consistent performance. This 125mm nylon swivel bolt hole castor offers dependable movement, excellent environmental resistance and secure fixing, making it a reliable choice for everyday industrial applications.
Technical Details
 |
Bolt Hole Castors |
|---|---|
|
|
Plain |
|
|
150 |
|
|
TSZ7 NSR 125/40 F0-12 |
|
|
125-4000-NY.pdf |
|
|
38 |
|
|
-40 min to + 80 max |
|
|
12 |
|
|
D75 |
|
|
450 |
|
|
100 |
|
|
157 |
|
|
White |
|
|
125 |
|
|
Nylon |
