150mm Heavy Duty Swivel Castors Cast Iron Wheel
SKU
150-5000-CIB
This 150 mm heavy-duty swivel castor with a cast iron wheel is engineered for tough industrial... Read Full Description
In stock
£96.17
£80.14
- Price
- 1 + £96.17 £80.14
CAD Request
Frequently bought together
Alternative Products
Description

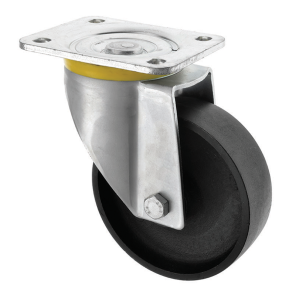

This 150 mm heavy-duty swivel castor with a cast iron wheel is engineered for tough industrial environments where durability and load-bearing strength are key. Designed for applications that demand robust performance under heavy loads, the swivel action allows smooth 360° directional movement, making it ideal for industrial trolleys, plant equipment, machinery bases and material-handling platforms.
With a 700 kg load capacity per castor, this unit provides dependable support for demanding handling tasks. The roller bearing swivel head ensures consistent, low-resistance rotation even under heavy load and frequent use, contributing to long service life and reduced effort during manoeuvring.
The cast iron wheel delivers exceptional structural strength and durability, making it a solid choice for harsh operating conditions and abrasive floor surfaces. With a 45 mm tread width and engineered for use within –20 °C to +60 °C, this castor is built to withstand rugged, continuous industrial use without premature wear.
A large top plate fixing (140 × 110 mm) with 105 × 80/75 mm hole centres and 10 mm hole diameter offers secure mounting and excellent load distribution — helping keep equipment stable even under heavy loads.
Key Features
-
Heavy-duty swivel castor — Full 360° movement for easy positioning
-
700 kg load capacity per castor — Strong support for heavy industrial use
-
Cast iron wheel — Exceptional strength and wear resistance
-
150 mm wheel diameter — Balanced rolling performance under load
-
45 mm tread width — Stable contact and load footprint
-
Roller bearing swivel head — Smooth rotation under heavy duty use
-
Large top plate fixing — Secure mount for industrial equipment
-
Operating temperature range –20 °C to +60 °C
Specifications
-
Castor Type: Swivel, Top Plate
-
Load Capacity: 700 kg per castor
-
Max Load Capacity of 4 Castors: 2100 kg
-
Wheel Diameter: 150 mm
-
Tread Width: 45 mm
-
Wheel Material: Cast Iron
-
Bearing Type: Roller Bearing (Swivel Head)
-
Temperature Range: –20 °C to +60 °C
-
Total Castor Height: 190 mm
-
Swivel Radius: 125 mm
-
Plate Length: 140 mm
-
Plate Width: 110 mm
-
Plate Hole Centres: 105 × 80/75 mm
-
Plate Hole Diameter: 10 mm
Applications
Perfect for:
-
Industrial trolleys and carts
-
Heavy equipment bases and frames
-
Material handling and assembly platforms
-
Workshops, factories and production lines
-
Applications where maximum wheel strength is needed
Why Choose Ross Handling
Ross Handling supplies a carefully selected range of heavy-duty castors engineered for strength, durability and long-term reliability in industrial settings. Our products are chosen to meet the rigorous demands of manufacturing, logistics and commercial environments.
This 150 mm heavy-duty swivel castor with a cast iron wheel offers robust load support, smooth manoeuvrability and exceptional durability, making it an excellent choice for heavy handling applications where strength and performance matter.
Technical Details
 |
Top Plate Castors |
|---|---|
|
|
Roller |
|
|
700 |
|
|
150-5000-CIB_1.pdf |
|
|
45 |
|
|
-20 min to +60 max |
|
|
2100 |
|
|
140 |
|
|
110 |
|
|
105 |
|
|
80/75 |
|
|
10 |
|
|
125 |
|
|
190 |
|
|
150 |
|
|
Cast Iron |
