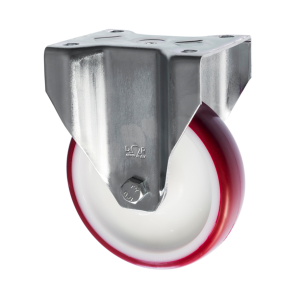

160mm Fixed Castors Polyurethane Wheel

SKU
160-3368-PNB

This 160mm fixed castor is made of a zinc plated housing which ensures the castor is robust enough and suitable for a variety of environments. The fixed castor, with the polyurethane wheel is... Read More

In stock
£19.87 £16.56
  • Price
  • 1 + £19.87 £16.56
£19.87 £16.56
Qty
  • Discount Bulk Enquiry
CAD Request

To receive a CAD drawing of this product please enter your details below:


Frequently bought together

  1. 160mm Fixed Castor Polyurethane Wheel
  2. +
  3. 160mm Fixed Castor Polyurethane Wheel
  4. +
  5. 160mm Swivel Braked Castor Polyurethane Wheel
  6. +
  7. 160mm Swivel Braked Castor Polyurethane Wheel
  8. +

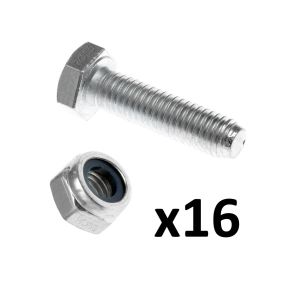

  9. M10 x 40 Bolt and M10 Nyloc Nut 16 Pack
  • This item: 160mm Fixed Castors Polyurethane Wheel £19.87
  • 160mm Fixed Castors Polyurethane Wheel £19.87
Total price: £0.00

Description

This 160mm fixed castor is made of a zinc plated housing which ensures the castor is robust enough and suitable for a variety of environments. The fixed castor, with the polyurethane wheel is strong and durable and suitable for moving machinery and equipment. The polyurethane tire is bonded onto the polyamide nylon center making the castor strong and durable. Fixed castors can be teamed up with swiveling and braked castors for maximum control when moving.

Technical Details
More Information
Top Plate Castors Castor Type Top Plate Castors
Roller Bearing Type Roller
300 Load Capacity 300
TSZ7 NPR 160/40 P3 FA Manufacturer Part No. TSZ7 NPR 160/40 P3 FA
Top Plate Castors Product Type Top Plate Castors
160-3368-PNB_1.pdf Technical PDF 160-3368-PNB_1.pdf
40 Tread Width (mm) 40
-40 min to +80 max Temperature Range -40 min to +80 max
D60 Hardness of Tread D60
900 Max Load Capacity of 4 Castors 900
140 Plate Length (mm) 140
110 Plate Width (mm) 110
105 Plate Hole Centres Length (mm) 105
80/75 Plate Hole Centres Width (mm) 80/75
10 Plate Hole Diameter 10
200 Total Castor Height 200
Maroon Wheel Colour Maroon
Polyurethane Wheel Material Polyurethane
White Polyamide Wheel Centre White Polyamide
160 Wheel Diameter (mm) 160
