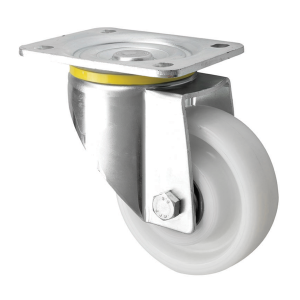

160mm Heavy Duty Nylon Castor Wheel with Directional Lock
SKU
160-5000-NYB/D
This 160 mm heavy-duty swivel castor with directional lock and white nylon wheel is designed for... Read Full Description
In stock
£97.18
£80.98
- Price
- 1 + £97.18 £80.98
CAD Request
Frequently bought together
Alternative Products
Description
This 160 mm heavy-duty swivel castor with directional lock and white nylon wheel is designed for industrial applications that require high load capacity, controlled manoeuvrability and the option to lock straight-line movement when needed. The directional lock allows the swivel action to be locked so the wheel rolls straight ahead, reducing steer effort on long runs or narrow aisles, yet can be unlocked when full swivel is required.
With a load capacity of 700 kg per castor, this castor is ideal for industrial trolleys, machine bases, material handling platforms and workshop carts operating under substantial load. The ball journal swivel bearing ensures smooth, low-resistance rotation, providing reliable performance and long service life—even under heavy use.
The nylon wheel offers excellent wear resistance, low rolling resistance and good chemical resistance, making it well suited to hard, smooth flooring and environments where durable, easy-rolling castors are needed. The 50 mm tread width and D75 hardness provide a stable and resilient tread profile, while the wide temperature range (–40 °C to +80 °C) ensures dependable performance across varied indoor conditions.
A large top plate fixing (140 × 110 mm) with 105 × 80/75 mm hole centres and 10 mm hole diameter ensures secure mounting and effective load distribution for heavy duty applications.
Key Features
-
Heavy-duty swivel castor with directional lock – Locks swivel for straight tracking or unlocks for full swivel mobility
-
700 kg load capacity per castor – Robust support for demanding industrial use
-
White nylon wheel – Durable, low rolling resistance and floor-friendly
-
160 mm wheel diameter – Smooth rolling under heavy loads
-
50 mm tread width – Enhanced stability and footprint contact
-
Ball journal swivel bearing – Reliable, smooth rotation under load
-
Large top plate fixing – Secure mount for heavy equipment
-
Operating temperature range –40 °C to +80 °C
Specifications
-
Castor Type: Swivel with Directional Lock, Top Plate
-
Load Capacity: 700 kg per castor
-
Max Load Capacity of 4 Castors: 2100 kg
-
Wheel Diameter: 160 mm
-
Tread Width: 50 mm
-
Wheel Material: Nylon
-
Wheel Colour: White
-
Tread Hardness: D75 Shore
-
Bearing Type: Ball Journal (Swivel Head)
-
Temperature Range: –40 °C to +80 °C
-
Total Castor Height: 200 mm
-
Swivel Radius: 150 mm
-
Plate Length: 140 mm
-
Plate Width: 110 mm
-
Plate Hole Centres: 105 × 80/75 mm
-
Plate Hole Diameter: 10 mm
Applications
Commonly used for:
-
Heavy industrial trolleys and carts
-
Machinery bases and equipment platforms
-
Material handling and warehouse systems
-
Manufacturing and assembly equipment
-
Environments requiring controlled straight tracking with load support
Why Choose Ross Handling
Ross Handling supplies a carefully selected range of heavy-duty castors engineered for strength, durability and dependable performance in industrial environments. Products are chosen to meet the practical demands of commercial, manufacturing and logistics users.
This 160 mm heavy-duty swivel castor with directional lock and white nylon wheel delivers excellent load capacity, controlled manoeuvrability and robust construction, making it a dependable choice for demanding handling applications.
Technical Details
 |
Top Plate Castors |
|---|---|
|
|
Ball Journal |
|
|
700 |
|
|
160-5000-NYB-D.pdf |
|
|
50 |
|
|
-40 min to +80 max |
|
|
D75 |
|
|
2100 |
|
|
140 |
|
|
110 |
|
|
105 |
|
|
80/75 |
|
|
10 |
|
|
150 |
|
|
200 |
|
|
White |
|
|
160 |
|
|
Nylon |
