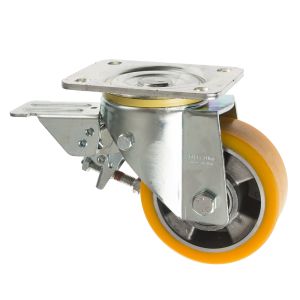

160mm Heavy Duty Leading Brake Castors with Polyurethane Wheel
SKU
160-5000-PAL/FR
This 160 mm heavy-duty swivel castor with leading brake combines high load capacity,
In stock
£73.61
£61.34
CAD Request
Frequently bought together
Alternative Products
Description
This 160 mm heavy-duty swivel castor with leading brake combines high load capacity, controlled manoeuvrability and enhanced braking action for demanding industrial applications. The leading brake engages as the wheel rolls forward, helping to moderate movement and stabilise loads — ideal for heavy trolleys on slight inclines or busy workshop floors.
With a 700 kg load capacity per castor, this model is perfect for industrial trolleys, equipment bases, material-handling platforms and production carts operating under substantial loads. The ball journal swivel bearing delivers smooth, dependable rotation under load, contributing to long service life and reliable performance in challenging environments.
The polyurethane on aluminium wheel pairs a lightweight aluminium core with a durable polyurethane tread, offering excellent load support, vibration absorption and floor protection. The 50 mm tread width and 92 Shore A hardness create a resilient running surface that balances traction, wear resistance and quieter operation. Designed for use within a temperature range of –20 °C to +60 °C, this castor performs reliably across a wide range of indoor industrial settings.
A large top plate fixing (140 × 110 mm) with 105 × 80/75 mm hole centres ensures secure mounting and effective load distribution for heavy-duty installations that require both braking support and mobility.
Key Features
-
Heavy-duty swivel castor with leading brake – Controlled forward braking for stable movement
-
700 kg load capacity per castor – Exceptional support for industrial use
-
Polyurethane on aluminium wheel – Durable, floor-friendly tread with excellent load support
-
160 mm wheel diameter – Efficient rolling under heavy loads
-
50 mm tread width – Enhanced stability and wheel contact
-
Ball journal swivel bearing – Smooth, low-resistance rotation
-
Large top plate fixing – Secure mount for heavy equipment
-
Operating temperature range –20 °C to +60 °C
Specifications
-
Castor Type: Swivel with Leading Brake, Top Plate
-
Load Capacity: 700 kg per castor
-
Max Load Capacity of 4 Castors: 2100 kg
-
Wheel Diameter: 160 mm
-
Tread Width: 50 mm
-
Wheel Material: Polyurethane on Aluminium
-
Wheel Colour: Yellow
-
Tread Hardness: 92 Shore A
-
Bearing Type: Ball Journal (Swivel Head)
-
Temperature Range: –20 °C to +60 °C
-
Total Castor Height: 200 mm
-
Swivel Radius: 170 mm
-
Plate Length: 140 mm
-
Plate Width: 110 mm
-
Plate Hole Centres: 105 × 80/75 mm
-
Plate Hole Diameter: 10 mm
Applications
Commonly used for:
-
Heavy-duty industrial trolleys and carts
-
Machinery bases and equipment platforms
-
Material handling and warehouse systems
-
Manufacturing and assembly equipment
-
Environments requiring controlled forward braking with load support
Why Choose Ross Handling
Ross Handling supplies a carefully selected range of heavy-duty castors engineered for strength, durability and dependable performance in industrial environments. Products are sourced to meet the practical demands of manufacturing, logistics and commercial users.
This 160 mm heavy-duty swivel castor with leading brake and polyurethane on aluminium wheel delivers excellent load support, controlled manoeuvrability and enhanced braking performance, making it a dependable choice for demanding handling applications.
Technical Details
 |
Top Plate Castors |
|---|---|
|
|
Ball Journal |
|
|
700 |
|
|
160-5000-PAL-FR.pdf |
|
|
50 |
|
|
-20 min to +60 max |
|
|
92 shore A |
|
|
2100 |
|
|
140 |
|
|
110 |
|
|
105 |
|
|
80/75 |
|
|
10 |
|
|
170 |
|
|
200 |
|
|
Yellow |
|
|
160 |
|
|
Polyurethane on Aluminium |
