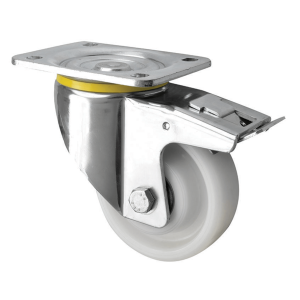

Heavy Duty Swivel Castor with Brake 160mm Nylon Wheel
SKU
160-5000-NYB/SWB
This 160 mm heavy-duty swivel braked castor with a white nylon wheel is engineered for
In stock
£70.09
£58.41
- Price
- 1 + £70.09 £58.41
CAD Request
Frequently bought together
Alternative Products
Description
This 160 mm heavy-duty swivel braked castor with a white nylon wheel is engineered for industrial environments where high load support, smooth manoeuvrability and reliable braking performance are essential. The swivel action allows effortless directional changes, while the integrated brake locks both the wheel and swivel for stable stopping and secure positioning — ideal for heavy trolleys, carts or equipment bases on busy workshop floors or gradients.
With a load capacity of 700 kg per castor, this model delivers robust strength for demanding applications in manufacturing, warehousing and logistics. The ball journal swivel bearing provides smooth, low-resistance rotation under load, contributing to dependable performance and long service life in tough operating conditions.
The nylon wheel offers excellent wear resistance, low rolling effort and good chemical resistance, making it suitable for a range of indoor surfaces. Its 40 mm tread width and D75 hardness create a stable contact footprint that supports heavy loads while helping to protect floors. Designed for use within a temperature range of –40 °C to +80 °C, this castor performs reliably across varied industrial environments.
A large top plate fixing (140 × 110 mm) with 105 × 80/75 mm hole centres and 10 mm hole diameter ensures secure mounting and effective load distribution for heavy duty installations.
Key Features
-
Heavy-duty swivel braked castor – Controlled manoeuvrability with secure braking
-
700 kg load capacity per castor – Excellent support for industrial applications
-
White nylon wheel – Durable, low rolling resistance and floor-friendly
-
160 mm wheel diameter – Smooth rolling under heavy loads
-
40 mm tread width – Good stability and contact area
-
Ball journal swivel bearing – Smooth, reliable rotation
-
Large top plate fixing – Secure mount for heavy equipment
-
Operating temperature range –40 °C to +80 °C
Specifications
-
Castor Type: Swivel Braked, Top Plate
-
Load Capacity: 700 kg per castor
-
Max Load Capacity of 4 Castors: 2100 kg
-
Wheel Diameter: 160 mm
-
Tread Width: 40 mm
-
Wheel Material: Nylon
-
Wheel Colour: White
-
Tread Hardness: D75 Shore
-
Bearing Type: Ball Journal (Swivel Head)
-
Temperature Range: –40 °C to +80 °C
-
Total Castor Height: 200 mm
-
Swivel Radius: 150 mm
-
Plate Length: 140 mm
-
Plate Width: 110 mm
-
Plate Hole Centres: 105 × 80/75 mm
-
Plate Hole Diameter: 10 mm
Applications
Commonly used for:
-
Heavy-duty industrial trolleys and carts
-
Machinery bases and equipment platforms
-
Material handling and warehouse systems
-
Manufacturing and assembly equipment
-
Environments requiring reliable braking under load
Why Choose Ross Handling
Ross Handling supplies a carefully selected range of heavy-duty castors engineered for strength, durability and dependable performance in demanding industrial environments. Products are chosen to meet the practical needs of commercial, manufacturing and logistics users.
This 160 mm heavy-duty swivel braked castor with white nylon wheel delivers excellent load capacity, smooth manoeuvrability and secure braking performance, making it a dependable choice for heavy handling applications.
Technical Details
 |
Top Plate Castors |
|---|---|
|
|
Ball Journal |
|
|
700 |
|
|
160-5000-NYB-SWB_1.pdf |
|
|
40 |
|
|
-40 min to + 80 max |
|
|
D75 |
|
|
2100 |
|
|
140 |
|
|
110 |
|
|
105 |
|
|
80/75 |
|
|
10 |
|
|
150 |
|
|
200 |
|
|
White |
|
|
160 |
|
|
Nylon |
