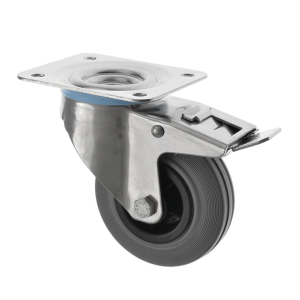

160mm Swivel Stainless Steel Braked Castor Rubber Wheel
SKU
SS-160-GVR/SWB
This stainless-steel swivel braked castor is designed for applications requiring smooth rolling, Read Full Description
In stock
£66.60
£55.50
- Price
- 1 + £66.60 £55.50
CAD Request
Frequently bought together
Description
This stainless-steel swivel braked castor is designed for applications requiring smooth rolling, controlled braking, and reliable corrosion resistance. Equipped with a 160 mm rubber-on-polypropylene wheel, it delivers soft, quiet movement with excellent floor protection, making it suitable for light-to-medium industrial, commercial and hygienic environments.
The castor features a 150 kg load capacity, a roller bearing for efficient rotation under load, and an integrated brake that provides positive locking when equipment needs to remain safely in place. The rubber tread, rated at A80 hardness, offers good shock absorption and grip, while the polypropylene core maintains durability and stability.
With a total height of 196 mm, 25 mm tread width, and a robust stainless-steel frame, this castor provides dependable performance in wash-down, moisture-prone and chemically exposed environments.
Key Features
-
160 mm rubber-on-polypropylene wheel – soft, quiet rolling and excellent floor protection
-
Stainless steel construction – corrosion-resistant, ideal for hygienic environments
-
150 kg load capacity – suitable for light and medium industrial equipment
-
Integrated brake – secure, controlled locking for safety and stability
-
Roller bearing – smooth rotation under load with long service life
-
A80 tread hardness – good grip and shock absorption
-
25 mm tread width – stable rolling and reduced floor impact
-
Temperature range –20°C to +60°C – suitable for chilled, ambient and warm working areas
Specifications
-
Castor Type: Swivel Braked, Top Plate
-
Bearing Type: Roller
-
Load Capacity: 150 kg
-
Wheel Diameter: 160 mm
-
Tread Width: 25 mm
-
Wheel Material: Rubber on Polypropylene
-
Tread Hardness: A80
-
Temperature Range: –20°C to +60°C
-
Wheel Colour: Grey
-
Total Castor Height: 196 mm
-
Swivel Radius: 170 mm
-
Plate Length: 140 mm
-
Plate Width: 110 mm
-
Hole Centres (Length): 105 mm
-
Hole Centres (Width): 80 / 75 mm
-
Hole Diameter: 10 mm
-
Max Load on 4 Castors: 450 kg
-
Technical File: SS-160-GVR-SWB.pdf
Applications
Ideal for use in:
-
Commercial and light industrial equipment
-
Food-processing and hygienic environments requiring stainless steel hardware
-
Medical trolleys, prep stations and laboratory equipment
-
Retail display units and indoor transport systems
-
Applications requiring quiet rolling and secure braking
Why Choose Ross Handling
Ross Handling supplies high-quality stainless-steel castors designed for hygienic environments and reliable mobility. This 160 mm braked model combines smooth, quiet rolling, strong corrosion resistance and stable braking performance. Its rubber tread provides excellent floor protection and user comfort—making it a dependable solution for commercial, light industrial and hygienic applications.
Technical Details
 |
Top Plate Castors |
|---|---|
|
|
Roller |
|
|
150 |
|
|
SS-160-GVR-SWB .pdf |
|
|
25 |
|
|
-20 min to + 60 max |
|
|
A80 |
|
|
450 |
|
|
140 |
|
|
110 |
|
|
105 |
|
|
80/75 |
|
|
10 |
|
|
170 |
|
|
196 |
|
|
Grey |
|
|
160 |
|
|
Rubber on Polypropylene |
