Polyurethane Wheel Electro Conductive Stainless Steel Bearings
This 200 mm electrically conductive rubber wheel is engineered for use in environments where static control is essential. Its conductive tread safely dissipates electrostatic charge, making it... Read Full Description
- Price
- 1 + £64.60 £53.83
Frequently bought together

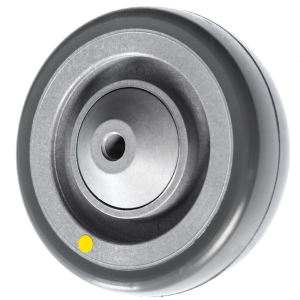

This 200 mm electrically conductive rubber wheel is engineered for use in environments where static control is essential. Its conductive tread safely dissipates electrostatic charge, making it suitable for electronics assembly, cleanrooms, laboratories, pharmaceutical handling and sensitive industrial applications.
The wheel features a durable rubber tread with a high 95 Shore A hardness, providing excellent wear resistance while maintaining controlled conductivity. The ball journal bearing ensures smooth rolling under load, and the reinforced hub design offers stability and long service life even during frequent operation.
Key Features
-
Electrically conductive rubber tread for safe static dissipation
-
400 kg load capacity for medium–heavy-duty applications
-
Smooth-running ball journal bearing
-
High 95 Shore A tread hardness for long wear life
-
Large 200 mm diameter for excellent obstacle clearance and floor protection
-
Suitable for creating ESD-safe castor assemblies or replacing wheels on sensitive equipment
Specifications
-
Wheel Diameter: 200 mm
-
Wheel Material: Electrically conductive rubber
-
Wheel Colour: Grey
-
Load Capacity: 400 kg
-
Tread Width: 50 mm
-
Hub Bore: 25 mm
-
Hub Length: 60 mm
-
Bearing Type: Ball journal
-
Tread Hardness: 95 Shore A
-
Temperature Range: –40°C to +80°C
Applications
-
ESD-safe trolleys and transport equipment
-
Electronics manufacturing and assembly areas
-
Cleanrooms, labs, pharmaceutical and medical environments
-
Industrial carts requiring static dissipation
-
Mobile equipment where static build-up must be controlled
Why Choose Ross Handling
Ross Handling supplies high-quality conductive wheels designed to protect sensitive equipment and work environments. This 200 mm conductive rubber wheel offers strong load support, reliable static control and smooth operation — making it ideal for precision manufacturing, laboratory and industrial use.
 |
Ball Journal |
|---|---|
|
|
400 |
|
|
50 |
|
|
-40 min to +80 max |
|
|
200 |
|
|
25 |
|
|
Grey |
|
|
60 |
|
|
Electrically Conductive Rubber |
|
|
95 shore A |
