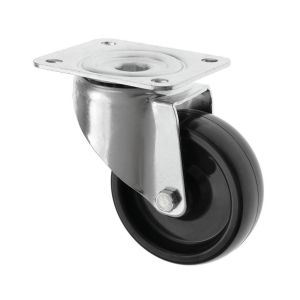

200mm High Temperature Castors with Phenolic Resin Wheel
SKU
200-3360-TH
This 200 mm high temperature swivel castor with phenolic resin wheel is designed for
In stock
£68.40
£57.00
- Price
- 1 + £68.40 £57.00
CAD Request
Frequently bought together
Alternative Products
Description
This 200 mm high temperature swivel castor with phenolic resin wheel is designed for heavy-duty, heat-resistant applications where smooth manoeuvrability, dimensional stability and reliable performance at elevated temperatures are essential. The swivel housing allows controlled directional movement, making it suitable for large equipment operating in hot industrial environments.
With a load capacity of 300 kg per castor, this model is ideal for industrial ovens, bakery racks, food processing equipment and heat-exposed machinery. The plain bearing construction is particularly well suited to high-temperature use, offering dependable operation with minimal mechanical complexity.
The high temperature phenolic wheel is engineered to perform reliably in demanding thermal conditions, with an operating temperature range from –40°C to +180°C. Featuring a D85 tread hardness, the wheel provides excellent load resistance, rigidity and low rolling resistance under heat. The 200 mm wheel diameter improves rolling efficiency under heavy loads, while the 240 mm overall height provides stable support. A robust top plate fixing ensures secure installation in challenging industrial environments.
Key Features
-
Swivel castor – Smooth manoeuvrability and controlled positioning
-
High temperature phenolic wheel – Designed for heat-resistant applications
-
Operating temperature range –40°C to +180°C – Suitable for hot process environments
-
200 mm wheel diameter – Efficient rolling under heavy loads
-
300 kg load capacity per castor – Heavy-duty support
-
Plain bearing – Simple, heat-resistant construction
-
D85 tread hardness – Strong, rigid and wear resistant
-
Top plate fixing – Secure and stable mounting
Specifications
-
Castor Type: Swivel, Top Plate
-
Bearing Type: Plain
-
Load Capacity: 300 kg per castor
-
Max Load Capacity of 4 Castors: 900 kg
-
Wheel Diameter: 200 mm
-
Tread Width: 50 mm
-
Wheel Material: High Temperature Phenolic
-
Wheel Colour: Black
-
Tread Hardness: D85
-
Temperature Range: –40°C to +180°C
-
Total Castor Height: 240 mm
-
Swivel Radius: 165 mm
-
Plate Length: 137 mm
-
Plate Width: 105 mm
-
Plate Hole Centres: 105 × 80 mm
-
Plate Hole Diameter: 10 mm
Applications
Commonly used for:
-
Industrial ovens and bakery racks
-
Food processing and catering equipment
-
Heat-exposed manufacturing machinery
-
Thermal processing and sterilisation units
-
Applications requiring reliable mobility at elevated temperatures
Why Choose Ross Handling
Ross Handling supplies a carefully selected range of specialist castors engineered for demanding industrial environments, including high-temperature applications. Products are chosen for durability, reliability and consistent performance.
This 200 mm high temperature swivel castor with phenolic wheel delivers smooth movement, excellent heat resistance and heavy-duty load support, making it a dependable solution for thermal handling applications.
Technical Details
 |
Top Plate Castors |
|---|---|
|
|
Plain |
|
|
300 |
|
|
200-3360-TH_1.pdf |
|
|
50 |
|
|
-40 min to + 180 max |
|
|
D85 |
|
|
900 |
|
|
137 |
|
|
105 |
|
|
105 |
|
|
80 |
|
|
10 |
|
|
165 |
|
|
240 |
|
|
Black |
|
|
200 |
|
|
High Temperature Phenolic |
