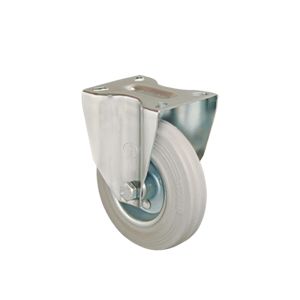

200mm Pressed Steel Fixed Castor with Grey Rubber Wheel
SKU
EM 02 SPRg 200
This 200 mm pressed steel fixed castor with grey rubber wheel is designed for heavy-duty applications requiring stable, straight-line movement... Read Full Description
In Stock
£19.36
£16.13
- Price
- 1 + £19.36 £16.13
CAD Request
Frequently bought together
Description
This 200 mm pressed steel fixed castor with grey rubber wheel is designed for heavy-duty applications requiring stable, straight-line movement and high load capacity. The fixed housing ensures consistent directional travel, making it ideal for equipment that moves along a defined path without the need for steering.
With a load capacity of 180 kg per castor, this model is well suited to heavy-duty trolleys, carts, transport equipment and machinery bases. The ball journal bearing provides smooth rolling under load, helping to reduce resistance and improve overall efficiency during operation.
The rubber on pressed steel wheel delivers controlled, quiet rolling with effective shock absorption. Combined with an 85 Shore A tread hardness, it helps reduce vibration and protect floor surfaces. A top plate fixing allows secure installation, while the 242 mm total castor height provides increased clearance for demanding indoor environments.
Key Features
-
Fixed castor – Stable, straight-line movement
-
200 mm wheel diameter – Excellent rolling efficiency and obstacle clearance
-
180 kg load capacity per castor – Suitable for heavy-duty applications
-
Grey rubber wheel – Non-marking with quiet operation
-
Rubber on pressed steel construction – Durable and impact resistant
-
Ball journal bearing – Smooth rolling and improved efficiency
-
Top plate fixing – Secure and reliable mounting
Specifications
-
Castor Type: Fixed, Top Plate
-
Bearing Type: Ball Journal
-
Load Capacity: 180 kg per castor
-
Max Load Capacity of 4 Castors: 540 kg
-
Wheel Diameter: 200 mm
-
Tread Width: 50 mm
-
Tread Hardness: 85 Shore A
-
Wheel Material: Rubber on Pressed Steel
-
Wheel Colour: Grey
-
Total Castor Height: 242 mm
-
Plate Length: 141 mm
-
Plate Width: 115 mm
-
Plate Hole Centres: 80 / 105 mm
-
Plate Hole Diameter: 10 mm
Applications
Commonly used for:
-
Heavy-duty industrial trolleys
-
Transport and handling equipment
-
Mobile machinery and equipment bases
-
Workshop and industrial applications
-
Indoor environments requiring straight-line movement under high loads
Why Choose Ross Handling
Ross Handling supplies a carefully selected range of castors and wheels chosen for durability, consistent performance and ease of installation. Products are sourced from trusted manufacturers to meet the demands of commercial and industrial environments.
This 200 mm pressed steel fixed castor with grey rubber wheel provides dependable straight-line movement, smooth rolling performance and long service life for demanding indoor applications.
Technical Details
 |
Top Plate Castors |
|---|---|
|
|
Ball Journal |
|
|
180 |
|
|
125-5000-HRT-D.pdf |
|
|
50 |
|
|
85 shore A |
|
|
540 |
|
|
141 |
|
|
115 |
|
|
80/105 |
|
|
10 |
|
|
242 |
|
|
Grey |
|
|
200 |
|
|
Rubber on Pressed Steel |
