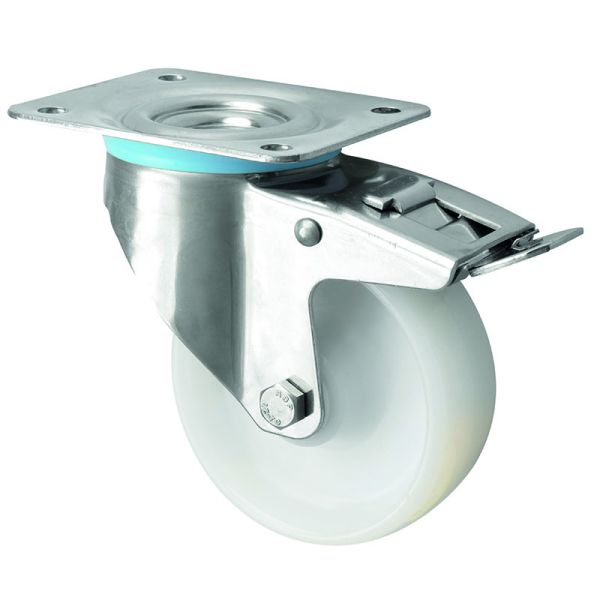

200mm Swivel Stainless Steel Braked Castor Nylon Wheel
SKU
SS-200-NY/SWB
This heavy-duty 200 mm swivel braked castor is engineered for demanding industrial, commercial and hygienic environments requiring high load capacity, corrosion resistance and smooth mobility.... Read Full Description
In stock
£67.73
£56.44
- Price
- 1 + £67.73 £56.44
CAD Request
Frequently bought together
Description
This heavy-duty 200 mm swivel braked castor is engineered for demanding industrial, commercial and hygienic environments requiring high load capacity, corrosion resistance and smooth mobility. Built with a robust stainless-steel housing and a durable white nylon wheel, it offers excellent resistance to moisture, chemicals and frequent wash-down cleaning.
With a 400 kg load capacity per castor (up to 1200 kg for four), a plain bearing suitable for harsh conditions, and a strong top-plate mounting system, this castor provides reliable, long-lasting performance. The integrated total-stop brake locks both the wheel and swivel head for secure positioning during loading, storage or operation.
Key Features
-
200 mm nylon wheel – hard-wearing, moisture-resistant and ideal for hygienic areas
-
Stainless-steel construction – corrosion-resistant, suitable for food, medical, pharmaceutical and marine environments
-
400 kg load capacity per castor – strong enough for heavy equipment and industrial mobility
-
Plain bearing – reliable, low-maintenance performance in demanding environments
-
Top-plate swivel mount – secure, stable fixing for equipment and trolley bases
-
Integrated total-stop brake – locks swivel and wheel for maximum stability
-
Temperature range: –40°C to +80°C
-
Wheel hardness: D75 (durable and wear-resistant)
-
Manufacturer Part No.: TSX7 NSD 200/50 P3 BP
Specifications
-
Wheel Diameter: 200 mm
-
Wheel Material: Nylon
-
Wheel Colour: White
-
Tread Width: 46 mm
-
Load Capacity: 400 kg per castor
-
Max Load (4 Castors): 1200 kg
-
Bearing Type: Plain
-
Total Height: 236 mm
-
Swivel Radius: 195 mm
-
Plate Size: 140 × 110 mm
-
Hole Centres: 105 mm (length) × 80/75 mm (width)
-
Hole Diameter: 10 mm
Applications
Perfect for environments requiring corrosion resistance, heavy load handling and regular cleaning:
-
Food-processing and commercial kitchen equipment
-
Pharmaceutical, medical and laboratory trolleys
-
Industrial carts, heavy-duty mobile workstations and material-handling units
-
Cold rooms, wash-down areas and chemical-prone facilities
-
Stainless-steel fabrication equipment, large platforms and mobile frames
Why Choose Ross Handling
Ross Handling provides premium stainless-steel castors designed for the most demanding environments. This 200 mm swivel braked nylon castor delivers exceptional strength, durability and hygiene compliance — offering smooth movement, secure braking and long service life in industrial, commercial and food-grade settings.
Technical Details
 |
Top Plate Castors |
|---|---|
|
|
Plain |
|
|
400 |
|
|
TSX7 NSD 200/50 P3 BP |
|
|
SS-200-NY-SWB.pdf |
|
|
46 |
|
|
-40 min to + 80 max |
|
|
D75 |
|
|
1200 |
|
|
140 |
|
|
110 |
|
|
105 |
|
|
80/75 |
|
|
10 |
|
|
195 |
|
|
236 |
|
|
White |
|
|
200 |
|
|
Nylon |
