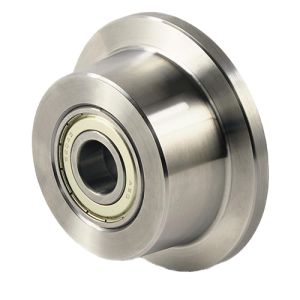

250mm Hardened Steel Single Flanged Wheel - 45mm Bore, Ball Bearing
Manufactured from hardened steel, this single flanged wheel is engineered to withstand heavy loads, supporting up to 4000 kg. The wheel features a ball bearing mechanism, which facilitates smooth rotation and reduces friction... Read Full Description
- Price
- 1 + £435.85 £363.21
Frequently bought together
Manufactured from hardened steel, this single flanged wheel is engineered to withstand heavy loads, supporting up to 4000 kg. The wheel features a ball bearing mechanism, which facilitates smooth rotation and reduces friction during operation. With a diameter of 250mm and a tread width of 60mm, it is suitable for a range of industrial applications. The wheel's hub bore measures 45mm, allowing for secure fitting onto compatible axles. Operating efficiently within a temperature range of -20°C to +120°C, this wheel is versatile for various environments. The flange groove and size are 15mm and 20mm respectively, providing stability and guidance along tracks.
Key Features
- Load Capacity: 4000 kg
- Wheel Diameter: 250mm
- Bore Size: 45mm – must match the axle diameter for proper fitting.
- Hub Length: 75mm – ensure compatibility with existing equipment.
- Tread Hardness: 180 to 230 HB
- Temperature Range: -20°C to +120°C
- Flange Groove: 15mm
- Flange Size: 20mm
Applications
- Industrial Trolleys: Used to support and guide trolleys carrying heavy loads.
- Material Handling Equipment: Fitted to equipment requiring high load capacity and stability.
- Conveyor Systems: Employed in systems where precise guidance is necessary.
- Track Systems: Utilised in applications that require a flanged wheel for directional control.
Why Choose Ross Handling
Ross Handling is a UK-based, family-run supplier of castors, wheels and handling components, established in 1977, with UK stock, fast delivery and an experienced team available to help you choose the right parts.
 |
Ball Bearing |
|---|---|
|
|
20 |
|
|
4000 |
|
|
60 |
|
|
-20 min to +120 max |
|
|
250 |
|
|
45 |
|
|
Grey |
|
|
75 |
|
|
15 |
|
|
Steel |
|
|
180 to 230 HB |
