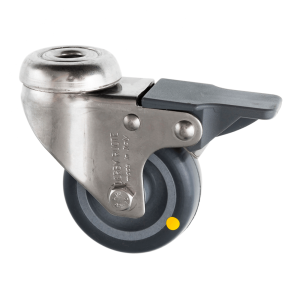

60mm Braked Stainless Steel Castor M12 BH Electroconductive Wheel
SKU
SSL-60-ASR/SWB/BH12
This 60 mm stainless steel swivel bolt hole castor with brake is designed for controlled... Read Full Description
In stock
£20.30
£16.92
- Price
- 1 + £20.30 £16.92
CAD Request
Frequently bought together
Alternative Products
Description
This 60 mm stainless steel swivel bolt hole castor with brake is designed for controlled movement, compact installation, and electrostatic discharge (ESD) protection in sensitive working environments. The central bolt hole fixing allows quick, space-saving mounting, while the integrated brake ensures secure positioning when equipment must remain stationary.
Fitted with a 60 mm grey electro-conductive rubber wheel, this castor enables safe dissipation of static electricity while delivering quiet rolling, good grip, and effective floor protection. The A85 hardness tread provides a durable yet cushioned contact surface, ideal for smooth indoor flooring.
With a 40 kg load capacity per castor and a ball journal bearing, this model offers smooth rolling performance, low rolling resistance, and reliable manoeuvrability. The 22 mm tread width, 89 mm total height, and 90 mm swivel radius ensure precise handling, even in confined spaces.
Key Features
-
60 mm electro-conductive rubber wheel — ESD-safe operation with quiet rolling
-
Integrated brake — secure locking for safety and stability
-
Bolt hole mounting (12 mm) — compact, central fixing solution
-
Ball journal bearing — smooth, low-resistance movement
-
Stainless steel housing — corrosion-resistant and durable
-
40 kg load capacity per castor — ideal for light-duty applications
-
A85 tread hardness — balanced grip and shock absorption
-
–20 °C to +60 °C operating range — suitable for indoor environments
Specifications
-
Castor Type: Swivel Braked, Bolt Hole
-
Bearing Type: Ball Journal
-
Load Capacity: 40 kg
-
Max Load on 4 Castors: 120 kg
-
Wheel Diameter: 60 mm
-
Tread Width: 22 mm
-
Wheel Material: Electrically Conductive Rubber
-
Wheel Colour: Grey
-
Tread Hardness: A85
-
Temperature Range: –20 °C to +60 °C
-
Total Castor Height: 89 mm
-
Swivel Radius: 90 mm
-
Bolt Hole Size: 12 mm
-
Manufacturer Part No.: FSX7 HPC 060/22 f0-12 BP
Applications
Ideal for use in:
-
ESD-sensitive environments
-
Electronics assembly and testing areas
-
Medical and laboratory equipment
-
Light-duty trolleys and mobile units
-
Applications requiring static dissipation, compact mounting and braking
Why Choose Ross Handling
Ross Handling supplies high-quality stainless steel castors engineered for reliability, safety and smooth performance. This 60 mm electro-conductive swivel braked bolt hole castor combines effective static control, quiet operation, and secure braking, making it a dependable solution for sensitive industrial and commercial environments.
Technical Details
 |
Bolt Hole Castors |
|---|---|
|
|
Ball Journal |
|
|
40 |
|
|
FSX7 HPC 060/22 f0-12 BP |
|
|
SSL-60-ASR-SWB-BH10.pdf |
|
|
22 |
|
|
-20 min to + 60 max |
|
|
12 |
|
|
A85 |
|
|
120 |
|
|
90 |
|
|
89 |
|
|
Grey |
|
|
60 |
|
|
Electrically Conductive Rubber |
