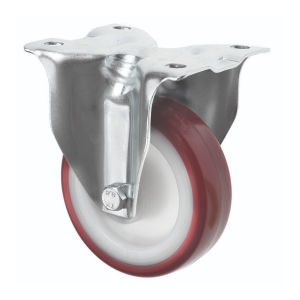

80mm Fixed Castor - Red Polyurethane Wheel
SKU
80-3368-PNB MAROON
Fitted with a maroon polyurethane wheel, this 80mm fixed castor is engineered for steady directional movement. The wheel's tread hardness of D60 provides a balance between firmness and flexibility, supporting up to 100kg per... Read Full Description
In stock
£9.24
£7.70
- Price
- 1 + £9.24 £7.70
CAD Request
Frequently bought together
Alternative Products
Description
Fitted with a maroon polyurethane wheel, this 80mm fixed castor is engineered for steady directional movement. The wheel's tread hardness of D60 provides a balance between firmness and flexibility, supporting up to 100kg per castor. Constructed from polyurethane on nylon, the wheel is equipped with roller bearings, enhancing its strength and reducing noise during operation. The castor is mounted using a top plate, which is bolted securely to a flat surface, ensuring stability in industrial settings. This fixed design keeps the wheel aligned for straightforward travel, making it a reliable choice for various equipment.
Key Features
- Tread Hardness: D60 – indicates the firmness of the wheel tread.
- Temperature Range: -40°C to +80°C – suitable for diverse environments.
- Plate Length: 99mm – must match the mounting surface.
- Plate Width: 85mm – must match the mounting surface.
- Plate Hole Centres: 80/77mm length, 60mm width – ensure compatibility with existing fittings.
- Plate Hole Diameter: 8mm – check against mounting bolts.
- Total Castor Height: 108mm
- Load Capacity: 100kg
Applications
- Industrial Trolleys: Provides stable movement for transporting goods.
- Warehouse Carts: Used for efficient handling of materials.
- Factory Equipment: Supports machinery requiring fixed directional movement.
- Storage Racks: Facilitates easy relocation within storage facilities.
Why Choose Ross Handling
Ross Handling is a UK-based, family-run supplier of castors, wheels and handling components, established in 1977, with UK stock, fast delivery and an experienced team available to help you choose the right parts.
Technical Details
 |
Top Plate Castors |
|---|---|
|
|
3360 |
|
|
Roller |
|
|
100 |
|
|
80-3368-PNB MAROON.pdf |
|
|
38 |
|
|
-40 min to +80 max |
|
|
D60 |
|
|
99 |
|
|
85 |
|
|
80/77 |
|
|
60 |
|
|
8 |
|
|
108 |
|
|
Maroon |
|
|
80 |
|
|
Polyurethane on Nylon |
