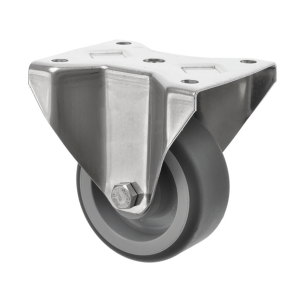

80mm Fixed Stainless Steel Castor Polyurethane Wheel
SKU
SF-80-PNB
This 80 mm fixed stainless-steel castor is engineered for reliable mobility in industrial, commercial and hygienic environments. Built with a Read Full Description
In stock
£27.30
£22.75
- Price
- 1 + £27.30 £22.75
CAD Request
Frequently bought together
Description
This 80 mm fixed stainless-steel castor is engineered for reliable mobility in industrial, commercial and hygienic environments. Built with a polyurethane-on-nylon wheel, it provides smooth rolling, excellent wear resistance and superior floor protection, making it ideal for frequent-use applications.
The wheel is available in two load configurations depending on wheel colour:
-
Maroon wheel: 100 kg load capacity
-
Grey wheel: 150 kg load capacity
The polyurethane tread (D60 hardness) offers strong durability, reduced rolling resistance and quieter operation, while the nylon core enhances stability under load. Combined with a roller bearing hub, this castor ensures smooth, efficient rolling even in demanding conditions.
The fixed top-plate design provides controlled, straight-line movement, making it ideal for machinery bases, equipment frames, transport units, stainless-steel benches and industrial trolleys.
Key Features
-
80 mm polyurethane-on-nylon wheel – smooth rolling, durable and non-marking
-
Load capacity:
-
100 kg (maroon wheel)
-
150 kg (grey wheel)
-
-
Stainless-steel construction – corrosion-resistant and suitable for wet or hygienic areas
-
Roller bearing hub – low-friction rolling under load
-
Fixed design – stable, straight-line control for equipment or carts
-
27 mm tread width – stable footprint with reduced wear
-
Temperature range: –40°C to +80°C
Specifications
-
Wheel Diameter: 80 mm
-
Wheel Material: Polyurethane on nylon
-
Wheel Colour Options:
-
Maroon (100 kg)
-
Grey (150 kg)
-
-
Tread Width: 27 mm
-
Load Capacity (4 Castors): 300 kg
-
Total Height: 108 mm
-
Plate Length: 99 mm
-
Plate Width: 85 mm
-
Hole Centres: 80 mm (L) × 60 mm (W)
-
Plate Hole Diameter: 8 mm
-
Bearing Type: Roller
-
Manufacturer Part No.: TSX7 NPD 080/30 P2 FA
Applications
Ideal for:
-
Stainless-steel tables, workbenches and fabrication equipment
-
Industrial trolleys, carts and transport units
-
Food-processing, pharmaceutical and laboratory environments
-
Wash-down, damp or chemical-prone areas
-
Machinery requiring controlled, fixed-direction movement
Why Choose This Castor
This stainless-steel fixed castor offers dependable performance and excellent durability. Its polyurethane-on-nylon wheel ensures smooth, long-lasting rolling, while the stainless housing provides corrosion resistance suitable for demanding, hygienic or industrial settings.
Technical Details
 |
Top Plate Castors |
|---|---|
|
|
Roller |
|
|
100 (MAROON WHEEL) 150 (GREY WHEEL) |
|
|
TSX7 NPD 080/30 P2 FA |
|
|
SF-80-PNB .pdf |
|
|
27 |
|
|
-40 min to + 80 max |
|
|
D60 |
|
|
300 |
|
|
99 |
|
|
85 |
|
|
80 |
|
|
60 |
|
|
8 |
|
|
108 |
|
|
Red |
|
|
80 |
|
|
Polyurethane on Nylon |
