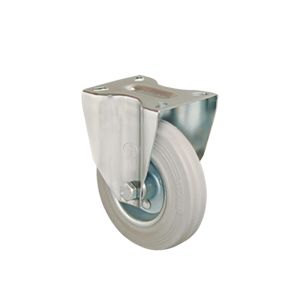

80mm Pressed Steel Fixed Castor with Grey Rubber Wheel
SKU
EM 02 SPRg 80
This 80 mm pressed steel fixed castor with grey rubber wheel is designed for applications requiring stable, straight-line movement with reliable... Read Full Description
In Stock
£4.80
£4.00
- Price
- 1 + £4.80 £4.00
CAD Request
Frequently bought together
Description
This 80 mm pressed steel fixed castor with grey rubber wheel is designed for applications requiring stable, straight-line movement with reliable rolling performance. The fixed housing ensures consistent directional travel, making it ideal for equipment that moves along a defined path without the need for steering.
With a load capacity of 60 kg per castor, this model is suitable for light- to medium-duty applications such as trolleys, carts, workstations and handling equipment. The ball journal bearing provides smooth rolling under load, reducing resistance and improving overall efficiency during operation.
The rubber on pressed steel wheel delivers controlled, quiet rolling with effective shock absorption. Combined with an 85 Shore A tread hardness, it helps reduce vibration and protect floor surfaces. A top plate fixing allows secure installation, while the 106 mm total castor height keeps overall equipment height compact.
Key Features
-
Fixed castor – Stable, straight-line movement
-
80 mm wheel diameter – Compact size with smooth rolling performance
-
60 kg load capacity per castor – Suitable for light to medium-duty use
-
Grey rubber wheel – Non-marking with quiet operation
-
Rubber on pressed steel construction – Durable and impact resistant
-
Ball journal bearing – Smooth rolling and improved efficiency
-
Top plate fixing – Secure and reliable mounting
Specifications
-
Castor Type: Fixed, Top Plate
-
Bearing Type: Ball Journal
-
Load Capacity: 60 kg per castor
-
Max Load Capacity of 4 Castors: 180 kg
-
Wheel Diameter: 80 mm
-
Tread Width: 25 mm
-
Tread Hardness: 85 Shore A
-
Wheel Material: Rubber on Pressed Steel
-
Wheel Colour: Grey
-
Total Castor Height: 106 mm
-
Plate Length: 100 mm
-
Plate Width: 85 mm
-
Plate Hole Centres: 60 / 80 mm
-
Plate Hole Diameter: 10 mm
Applications
Commonly used for:
-
Trolleys and carts requiring straight-line movement
-
Mobile workstations and equipment stands
-
Handling and transport equipment
-
Workshop and industrial applications
-
Indoor environments requiring controlled rolling
Why Choose Ross Handling
Ross Handling supplies a carefully selected range of castors and wheels chosen for durability, consistent performance and ease of installation. Products are sourced from trusted manufacturers to meet the demands of commercial and industrial environments.
This 80 mm pressed steel fixed castor with grey rubber wheel provides dependable straight-line movement, smooth rolling performance and long service life across a wide range of indoor applications.
Technical Details
 |
Top Plate Castors |
|---|---|
|
|
Ball Journal |
|
|
60 |
|
|
25 |
|
|
85 shore A |
|
|
180 |
|
|
100 |
|
|
85 |
|
|
60/80 |
|
|
10 |
|
|
106 |
|
|
Grey |
|
|
80 |
|
|
Rubber on Pressed Steel |
