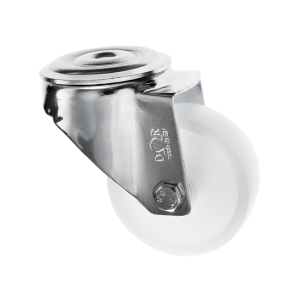

80mm Swivel Bolt Hole Castor Nylon Wheel
SKU
80-4000-NY
This 80mm swivel bolt hole castor is designed for smooth, reliable movement in industrial and commercial applications where strength and durability are essential. With a Read Full Description
In stock
£9.61
£8.01
- Price
- 1 + £9.61 £8.01
CAD Request
Frequently bought together
Alternative Products
Description
This 80mm swivel bolt hole castor is designed for smooth, reliable movement in industrial and commercial applications where strength and durability are essential. With a load capacity of up to 100 kg per castor, it is ideal for trolleys, equipment and mobile units requiring stable and controlled manoeuvrability.
Fitted with a hard-wearing nylon wheel, this castor offers excellent resistance to wear, impact and chemicals while performing reliably across a wide temperature range from -40°C to +80°C. The swivel head allows easy directional changes, while the bolt hole fixing provides a simple and secure mounting solution.
Key Features & Specifications
General
-
Castor Type: Swivel Bolt Hole Castor
-
Bearing Type: Plain
-
Maximum Load Capacity (per castor): 100 kg
-
Maximum Load Capacity (4 castors): 300 kg
-
Colour: White
Wheel Details
-
Wheel Diameter: 80 mm
-
Tread Width: 30 mm
-
Wheel Material: Nylon
-
Tread Hardness: D75
Dimensions & Mounting
-
Total Castor Height: 108 mm
-
Swivel Radius: 70 mm
-
Bolt Hole Diameter: 12 mm
Performance
-
Temperature Range: -40°C to +80°C
-
Durable nylon wheel for low rolling resistance and long service life
Typical Applications
-
Industrial trolleys and carts
-
Workshop and warehouse equipment
-
Mobile units and light machinery
-
Commercial handling applications
Why Choose Ross Handling
Ross Handling supplies dependable castor and wheel solutions engineered for durability, performance and reliability. This 80mm swivel bolt hole castor offers robust construction, smooth movement and excellent environmental resistance, making it a practical choice for demanding everyday applications.
Technical Details
 |
Bolt Hole Castors |
|---|---|
|
|
Plain |
|
|
100 |
|
|
TSZ7 NSR 080/30 F0-12 |
|
|
80-4000-NY.pdf |
|
|
30 |
|
|
-40 min to + 80 max |
|
|
12 |
|
|
D75 |
|
|
300 |
|
|
70 |
|
|
108 |
|
|
White |
|
|
80 |
|
|
Nylon |
