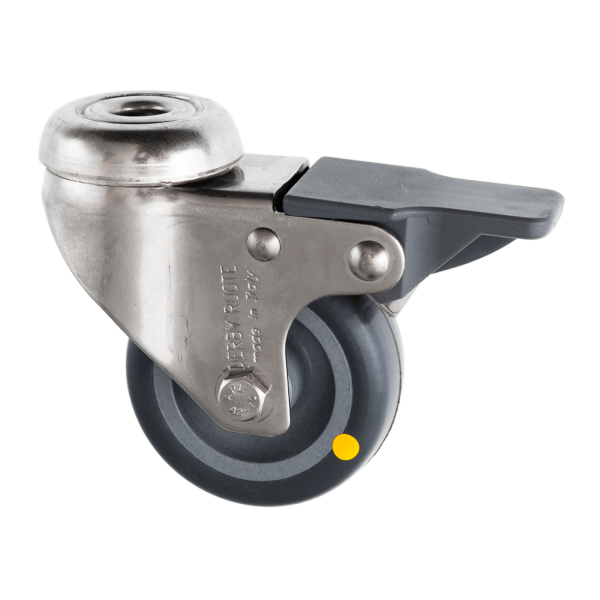

80mm Stainless Steel Braked M12 Bolt Hole with Electroconductive Wheel
SKU
SSL-80-ASR/SWB/BH12
This 80 mm stainless steel swivel bolt hole castor with brake is designed for controlled... Read Full Description
In stock
£23.86
£19.88
- Price
- 1 + £23.86 £19.88
CAD Request
Frequently bought together
Alternative Products
Description
This 80 mm stainless steel swivel bolt hole castor with brake is designed for controlled movement, compact central mounting, and electrostatic discharge (ESD) protection in sensitive working environments. The bolt hole fixing allows fast, space-saving installation, while the integrated brake provides secure positioning when equipment must remain stationary.
Fitted with an 80 mm grey electro-conductive rubber wheel, this castor enables safe dissipation of static electricity while delivering quiet rolling, excellent grip, and effective floor protection. The A85 hardness tread offers a durable yet cushioned rolling surface, ideal for smooth indoor floors.
With a 50 kg load capacity per castor and a ball journal bearing, this model delivers smooth rolling performance, low rolling resistance, and reliable manoeuvrability. The 22 mm tread width, 109 mm total height, and 98 mm swivel radius ensure precise handling with dependable braking performance.
Key Features
-
80 mm electro-conductive rubber wheel — ESD-safe operation with quiet rolling
-
Integrated brake — secure locking for safety and stability
-
Bolt hole mounting (12 mm) — compact, central fixing solution
-
Ball journal bearing — smooth, low-resistance movement
-
Stainless steel housing — corrosion-resistant and durable
-
50 kg load capacity per castor — ideal for light-duty applications
-
A85 tread hardness — balanced grip and shock absorption
-
–20 °C to +60 °C operating range — suitable for indoor environments
Specifications
-
Castor Type: Swivel Braked, Bolt Hole
-
Bearing Type: Ball Journal
-
Load Capacity: 50 kg
-
Max Load on 4 Castors: 150 kg
-
Wheel Diameter: 80 mm
-
Tread Width: 22 mm
-
Wheel Material: Electrically Conductive Rubber
-
Wheel Colour: Grey
-
Tread Hardness: A85
-
Temperature Range: –20 °C to +60 °C
-
Total Castor Height: 109 mm
-
Swivel Radius: 98 mm
-
Bolt Hole Size: 12 mm
-
Manufacturer Part No.: FSX7 HPC 080/22 F0-12 BP
Applications
Ideal for use in:
-
ESD-sensitive environments
-
Electronics assembly and testing areas
-
Medical and laboratory equipment
-
Light-duty trolleys and mobile units
-
Applications requiring static dissipation, compact mounting and braking
Why Choose Ross Handling
Ross Handling supplies high-quality stainless steel castors engineered for reliability, safety and smooth performance. This 80 mm electro-conductive swivel braked bolt hole castor combines effective static control, quiet operation, and secure braking, making it a dependable solution for sensitive industrial and commercial environments.
Technical Details
 |
Bolt Hole Castors |
|---|---|
|
|
Ball Journal |
|
|
50 |
|
|
FSX7 HPC 080/22 F0-12 BP |
|
|
SSL-80-ASR-SWB-BH10_v2.pdf |
|
|
22 |
|
|
-20 min to + 60 max |
|
|
12 |
|
|
A85 |
|
|
150 |
|
|
98 |
|
|
109 |
|
|
Grey |
|
|
80 |
|
|
Electrically Conductive Rubber |
