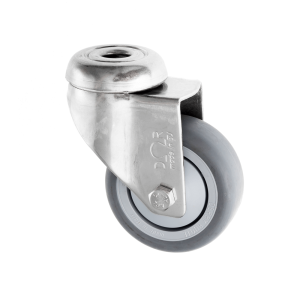

80mm Swivel M12 Bolt Hole Stainless Steel Castor Thermoplastic Rubber
SKU
SSL-80-TPR/BH12
* WHEEL CENTRE IS FITTED WITH LIGHT BLUE CAP *
This stainless steel swivel bolt hole castor is designed for... Read Full Description
In Stock
£14.87
£12.39
- Price
- 1 + £14.87 £12.39
CAD Request
Frequently bought together
Alternative Products
Description
* WHEEL CENTRE IS FITTED WITH LIGHT BLUE CAP *
This stainless steel swivel bolt hole castor is designed for smooth manoeuvrability, quiet operation, and compact installation in light-duty commercial and industrial applications. The bolt hole fixing allows for fast, central mounting where space is limited or a traditional top plate is not suitable.
Fitted with an 80 mm grey thermoplastic rubber wheel on a polypropylene core, this castor delivers excellent shock absorption, reduced noise, and effective floor protection. The A85 hardness tread provides a balanced combination of grip, comfort and durability, making it suitable for sensitive flooring and frequently moved equipment.
With a 50 kg load capacity per castor and a plain bearing, this model offers a simple, robust and low-maintenance solution. The 22 mm tread width, 109 mm total height and 70 mm swivel radius ensure smooth, controlled movement even in confined spaces.
Key Features
-
80 mm thermoplastic rubber wheel — quiet rolling and floor-friendly
-
Bolt hole mounting (12 mm) — compact, central fixing solution
-
Stainless steel housing — corrosion-resistant and durable
-
50 kg load capacity per castor — suitable for light-duty applications
-
Plain bearing — simple, robust and low maintenance
-
A85 tread hardness — good shock absorption and grip
-
–20 °C to +60 °C operating range — ideal for indoor environments
Specifications
-
Castor Type: Swivel, Bolt Hole
-
Bearing Type: Plain
-
Load Capacity: 50 kg
-
Max Load on 4 Castors: 150 kg
-
Wheel Diameter: 80 mm
-
Tread Width: 22 mm
-
Wheel Material: Rubber on Polypropylene
-
Wheel Colour: Grey
-
Tread Hardness: A85
-
Temperature Range: –20 °C to +60 °C
-
Total Castor Height: 109 mm
-
Swivel Radius: 70 mm
-
Bolt Hole Size: 12 mm
-
Manufacturer Part No.: FSX7 MGO 080/22 F0-12
Applications
Ideal for use in:
-
Light-duty trolleys and carts
-
Catering and service equipment
-
Medical and laboratory furniture
-
Display units and fixtures
-
Applications requiring quiet rolling and compact mounting
Why Choose Ross Handling
Ross Handling supplies high-quality stainless steel castors engineered for smooth movement, durability and corrosion resistance. This 80 mm bolt hole swivel castor provides quiet operation, easy installation and reliable everyday performance, making it a dependable choice for light-duty mobile equipment.
Technical Details
 |
Bolt Hole Castors |
|---|---|
|
|
Plain |
|
|
50 |
|
|
FSX7 MGO 080/22 F0-12 |
|
|
SSL-80-TPR-BH12.pdf |
|
|
22 |
|
|
-20 min to + 60 max |
|
|
12 |
|
|
A85 |
|
|
150 |
|
|
70 |
|
|
109 |
|
|
Grey |
|
|
80 |
|
|
Rubber on Polypropylene |
