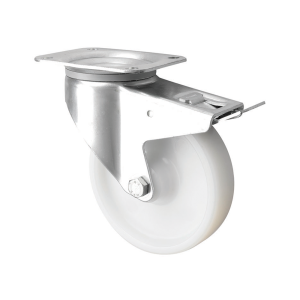

80mm Swivel Braked Castors Nylon Wheel
SKU
80-3360-NY/SWB
This 80 mm swivel braked castor with nylon wheel is designed for Read Full Description
In stock
£15.13
£12.61
- Price
- 1 + £15.13 £12.61
CAD Request
Frequently bought together
Alternative Products
Description
This 80 mm swivel braked castor with nylon wheel is designed for light- to medium-duty handling applications where smooth manoeuvrability, secure braking and chemical and moisture resistance are required. The swivel action allows easy changes in direction, while the integrated brake locks both the wheel and swivel head to help stabilise equipment when stationary.
With a load capacity of 150 kg per castor, this model is well suited to trolleys, mobile equipment and workplace fixtures. The plain bore bearing construction provides a simple, robust solution for applications where ease of maintenance and durability are prioritised.
The white nylon wheel features a hard, wear-resistant tread that offers excellent load support and low rolling resistance on smooth surfaces. With a tread hardness of D75 and an operating temperature range of –40°C to +80°C, this castor performs reliably in environments exposed to temperature variation, moisture or cleaning chemicals. The 80 mm wheel diameter delivers compact, efficient rolling performance, while the 108 mm overall height helps maintain equipment stability. A robust top plate fixing ensures secure and straightforward installation.
Key Features
-
Swivel castor with brake – Manoeuvrability with secure locking
-
Top plate fixing – Strong and stable mounting
-
80 mm wheel diameter – Compact and efficient rolling
-
150 kg load capacity per castor – Suitable for light- to medium-duty use
-
White nylon wheel – Hard-wearing, moisture and chemical resistant
-
Plain bore bearing – Simple, robust and low maintenance
-
High tread hardness (D75) – Excellent wear resistance
-
Wide temperature range: –40°C to +80°C
Specifications
-
Castor Type: Swivel Braked, Top Plate
-
Bearing Type: Plain
-
Load Capacity: 150 kg per castor
-
Max Load Capacity of 4 Castors: 450 kg
-
Wheel Diameter: 80 mm
-
Tread Width: 34 mm
-
Wheel Material: Nylon
-
Wheel Colour: White
-
Tread Hardness: D75
-
Temperature Range: –40°C to +80°C
-
Total Castor Height: 108 mm
-
Swivel Radius: 123 mm
-
Plate Length: 105 mm
-
Plate Width: 85 mm
-
Plate Hole Centres: 80 / 77 × 60 mm
-
Plate Hole Diameter: 8 mm
Applications
Commonly used for:
-
Food processing and hygienic environments
-
Workshop and industrial trolleys
-
Mobile equipment and machinery bases
-
Washdown and moisture-prone areas
-
Applications requiring secure braking and chemical resistance
Why Choose Ross Handling
Ross Handling supplies a carefully selected range of castors and wheels known for strength, durability and reliable performance. Products are chosen to meet the practical demands of commercial and industrial users.
This 80 mm swivel braked castor with nylon wheel delivers secure braking, high wear resistance and excellent environmental durability, making it a dependable choice for demanding handling applications.
Technical Details
 |
Top Plate Castors |
|---|---|
|
|
Plain |
|
|
150 |
|
|
80-3360-NY-SWB_2.pdf |
|
|
34 |
|
|
-40 min to +80 max |
|
|
D75 |
|
|
450 |
|
|
105 |
|
|
85 |
|
|
80/77 |
|
|
60 |
|
|
8 |
|
|
123 |
|
|
108 |
|
|
White |
|
|
80 |
|
|
Nylon |
