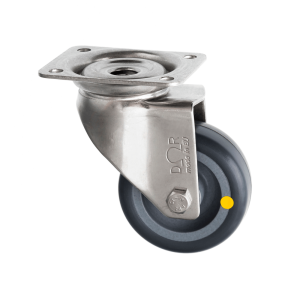

80mm Swivel Stainless Steel Castor Antistatic Rubber Wheel
SKU
SSL-80-ASR
This stainless-steel swivel castor is engineered for smooth rolling, electrostatic safety and... Read Full Description
In stock
£21.74
£18.12
- Price
- 1 + £21.74 £18.12
CAD Request
Frequently bought together
Description
This stainless-steel swivel castor is engineered for smooth rolling, electrostatic safety and corrosion resistance in light-duty environments. Fitted with an 80 mm electrically conductive rubber wheel, it provides static dissipation and floor protection, making it ideal for ESD-sensitive applications such as electronics assembly, laboratories, medical environments and clean commercial areas.
With a 50 kg load capacity and roller bearing, this castor delivers efficient, low-friction rotation and consistent performance under load. The A85 tread hardness ensures a reliable grip and long wear life, while the 22 mm tread width and 109 mm total height offer stable movement. Its stainless-steel frame provides excellent corrosion resistance for hygienic or wash-down conditions.
Key Features
-
Electrically conductive rubber wheel – ESD safe for static-sensitive environments
-
80 mm wheel diameter – smooth, cushioned rolling and floor protection
-
Stainless steel housing – corrosion-resistant, ideal for clean or damp environments
-
50 kg load capacity – suitable for light-duty equipment and units
-
Roller bearing – smooth, low-friction rotation
-
A85 tread hardness – stable grip with resilient wear characteristics
-
22 mm tread width – stable rolling footprint
-
–20 °C to +60 °C operating range – suitable for typical indoor environments
Specifications
-
Castor Type: Swivel, Top Plate
-
Bearing Type: Roller
-
Load Capacity: 50 kg
-
Max Load on 4 Castors: 150 kg
-
Wheel Diameter: 80 mm
-
Tread Width: 22 mm
-
Wheel Material: Electrically Conductive Rubber
-
Wheel Colour: Grey
-
Tread Hardness: A85
-
Temperature Range: –20 °C to +60 °C
-
Total Castor Height: 109 mm
-
Swivel Radius: 70 mm
-
Plate Length: 65 mm
-
Plate Width: 50 mm
-
Hole Centres (Length): 50 mm
-
Hole Centres (Width): 36 mm
-
Hole Diameter: 6 mm
-
Manufacturer Part Number: FSX7 HPC 080/22 P0
-
Technical File: SSL-80-ASR.pdf
Applications
Ideal for use in:
-
Electronics assembly, ESD-protected workstations and testing labs
-
Medical, laboratory and clean-room environments
-
Commercial trolleys, cabinets and static-sensitive units
-
Retail or industrial setups requiring floor protection and static control
-
Hygienic or wash-down areas needing corrosion-resistant castors
Why Choose Ross Handling
Ross Handling supplies high-quality stainless-steel castors engineered for smooth mobility, static safety and long-term reliability. This 80 mm swivel castor with an antistatic rubber wheel delivers ESD-safe performance, excellent rolling characteristics, and corrosion-resistant construction, making it a dependable choice for static-critical, hygienic and indoor applications.
Technical Details
 |
Top Plate Castors |
|---|---|
|
|
Roller |
|
|
50 |
|
|
FSX7 HPC 080/22 P0 |
|
|
SSL-80-ASR.pdf |
|
|
22 |
|
|
-20 min to + 60 max |
|
|
A85 |
|
|
150 |
|
|
65 |
|
|
50 |
|
|
50 |
|
|
36 |
|
|
6 |
|
|
70 |
|
|
109 |
|
|
Grey |
|
|
80 |
|
|
Electrically Conductive Rubber |
