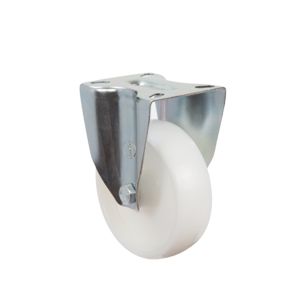

80mm Pressed Steel Fixed Castor with Nylon Wheel
SKU
EM 02 ZKZ 80
This 80 mm pressed steel fixed castor with white nylon wheel is designed for applications requiring stable, straight-line movement combined with... Read Full Description
In Stock
£4.92
£4.10
- Price
- 1 + £4.92 £4.10
CAD Request
Frequently bought together
Alternative Products
Description
This 80 mm pressed steel fixed castor with white nylon wheel is designed for applications requiring stable, straight-line movement combined with high load capacity and very low rolling resistance. The fixed housing ensures consistent directional travel, making it ideal for equipment that operates along a defined path without the need for steering.
With a load capacity of 120 kg per castor, this model is well suited to medium-duty trolleys, carts and handling equipment. The ball journal bearing provides smooth rolling under load, helping to reduce resistance and improve overall efficiency during movement.
The solid nylon wheel offers excellent strength, durability and resistance to wear. Its hard rolling surface delivers very low rolling resistance, making it particularly suitable for smooth indoor floors where efficiency, cleanliness and long service life are required. A top plate fixing ensures secure installation, while the 106 mm total castor height keeps overall equipment height compact and stable.
Key Features
-
Fixed castor – Stable, straight-line movement
-
80 mm wheel diameter – Compact size with efficient rolling performance
-
120 kg load capacity per castor – Suitable for medium-duty applications
-
White nylon wheel – Hard-wearing with very low rolling resistance
-
Solid nylon construction – Durable and long lasting
-
Ball journal bearing – Smooth rolling and improved efficiency
-
Top plate fixing – Secure and reliable mounting
Specifications
-
Castor Type: Fixed, Top Plate
-
Bearing Type: Ball Journal
-
Load Capacity: 120 kg per castor
-
Max Load Capacity of 4 Castors: 360 kg
-
Wheel Diameter: 80 mm
-
Tread Width: 30 mm
-
Wheel Material: Nylon
-
Wheel Colour: White
-
Total Castor Height: 106 mm
-
Plate Length: 100 mm
-
Plate Width: 85 mm
-
Plate Hole Centres: 60 / 80 mm
-
Plate Hole Diameter: 10 mm
Applications
Commonly used for:
-
Industrial and commercial trolleys
-
Handling and transport equipment
-
Workshop and warehouse environments
-
Machinery and equipment bases
-
Indoor applications with smooth floor surfaces
Why Choose Ross Handling
Ross Handling supplies a carefully selected range of castors and wheels chosen for durability, consistent performance and ease of installation. Products are sourced from trusted manufacturers to meet the demands of commercial and industrial environments.
This 80 mm pressed steel fixed castor with white nylon wheel provides dependable straight-line movement, low rolling resistance and long service life for a wide range of indoor applications.
Technical Details
 |
Top Plate Castors |
|---|---|
|
|
Ball Journal |
|
|
120 |
|
|
30 |
|
|
85 shore A |
|
|
360 |
|
|
100 |
|
|
85 |
|
|
60/80 |
|
|
10 |
|
|
106 |
|
|
White |
|
|
80 |
|
|
Nylon |
