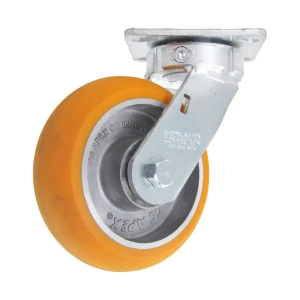

CC Apex Kingpinless Swivel Castor Extended Lead 125mm Ergonomic Wheel
SKU
CCAPEX-5S-KP-EXT-EU
This CC Apex 125 mm kingpinless swivel castor is engineered for tow-line systems, warehouse trains, platform trucks and heavy-duty industrial equipment. The extended-lead design improves... Read Full Description
In stock
£73.44
£61.20
- Price
- 1 + £73.44 £61.20
CAD Request
Frequently bought together
Description
This CC Apex 125 mm kingpinless swivel castor is engineered for tow-line systems, warehouse trains, platform trucks and heavy-duty industrial equipment. The extended-lead design improves tracking stability and reduces caster flutter during towing, ensuring smoother, more predictable movement under load.
The ergonomic polyurethane wheel provides low rolling resistance, protects floors and reduces operator effort. With a durable kingpinless swivel head and sealed bearings, this castor offers long-lasting, maintenance-free performance — ideal for high-use industrial environments.
Key Features
-
125 mm ergonomic polyurethane wheel for smooth, low-effort rolling
-
Kingpinless swivel mechanism for maximum durability
-
Extended lead fork provides improved stability during towing
-
362 kg load capacity per castor
-
Maintenance-free ball journal swivel bearings
-
Ideal for industrial tow-line carts, workshop trolleys and warehouse transport systems
Specifications
-
Castor Type: Top plate castor
-
Wheel Diameter: 125 mm
-
Wheel Material: Ergonomic polyurethane
-
Wheel Colour: Orange
-
Load Capacity: 362 kg
-
Max Load Capacity (4 castors): 1086 kg
-
Tread Width: 50 mm
-
Temperature Range: –20°C to +80°C
-
Tread Hardness: 87A
-
Bearing Type: Ball journal
-
Plate Length: 140 mm
-
Plate Width: 105 mm
-
Hole Centres (Length): 105 mm
-
Hole Centres (Width): 80 mm
-
Plate Hole Diameter: 10 mm
-
Swivel Radius: 102 mm
-
Total Castor Height: 165 mm
Applications
-
Tow-line carts and tug systems
-
Warehouse transport trains and logistics equipment
-
Industrial trolleys and workshop carts
-
Manufacturing equipment, mobile benches and heavy-duty frames
-
Any application needing strong, smooth, low-maintenance towing castors
Why Choose Ross Handling
Ross Handling supplies CC Apex castors engineered for ergonomic rolling, high durability and long service life. This 125 mm extended-lead kingpinless castor provides exceptional performance in tow-line, warehouse and industrial environments, ensuring stability, smooth movement and reduced maintenance.
Technical Details
 |
Top Plate Castors |
|---|---|
|
|
Ball Journal |
|
|
362 |
|
|
50 |
|
|
-20 min to +80 max |
|
|
87A |
|
|
1086 |
|
|
140 |
|
|
105 |
|
|
105 |
|
|
80 |
|
|
10 |
|
|
102 |
|
|
165 |
|
|
Orange |
|
|
125 |
|
|
Ergonomic Polyurethane |
