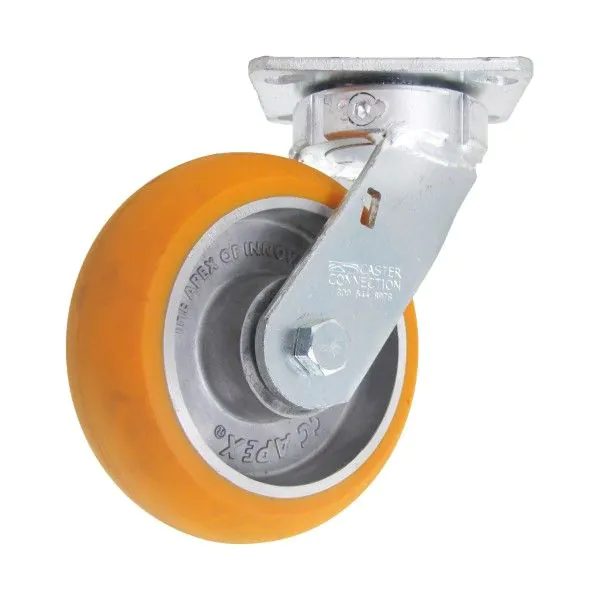

CC Apex Kingpinless Swivel Castor – 100mm Ergonomic Donut Wheel
SKU
CCAPEX-4S-KP-EXT-EU
This Apex kingpinless ergonomic towable castor is engineered for smooth, stable towing and controlled... Read Full Description
Ready for dispatch in 4-5 weeks
£73.27
£61.06
- Price
- 1 + £73.27 £61.06
CAD Request
Frequently bought together
Alternative Products
Description
This Apex kingpinless ergonomic towable castor is engineered for smooth, stable towing and controlled manoeuvring in demanding industrial environments. With a load capacity of up to 317 kg per castor, it is ideal for towable trolleys, carts and mobile equipment that require reliable tracking and reduced maintenance.
The extended lead design significantly improves directional stability when the castor is being towed, minimising swivel flutter and enhancing control over longer distances or uneven surfaces. Its kingpinless construction removes a common structural weak point found in traditional castors, delivering greater strength, durability and service life in high-use applications.
Fitted with a 100 mm ergonomic polyurethane wheel, this castor provides smooth rolling, excellent shock absorption and reduced rolling resistance while protecting floor surfaces. The wheel performs reliably across a temperature range from –20 °C to +80 °C, making it suitable for a wide range of industrial environments.
Key Features & Specifications
General
-
Castor Type: Towable Kingpinless Top Plate Castor
-
Bearing Type: Ball Journal
-
Maximum Load Capacity (per castor): 317 kg
-
Maximum Load Capacity (4 castors): 951 kg
-
Colour: Orange
Wheel Details
-
Wheel Diameter: 100 mm
-
Tread Width: 50 mm
-
Wheel Material: Ergonomic Polyurethane
-
Tread Hardness: 87 Shore A
-
Temperature Range: –20 °C to +80 °C
Mounting Details
-
Plate Length: 140 mm
-
Plate Width: 105 mm
-
Hole Centres: 105 mm × 80 mm
-
Plate Hole Diameter: 10 mm
Dimensions & Movement
-
Total Castor Height: 143 mm
-
Swivel Radius: 108 mm
-
Extended Lead: Optimised for towable applications
Performance
-
Kingpinless design for increased strength and reliability
-
Extended lead for improved towing stability
-
Smooth, low-resistance rolling with excellent shock absorption
-
Maintenance-free construction
Typical Applications
-
Towable industrial trolleys and carts
-
Factory and warehouse logistics equipment
-
Production line handling systems
-
Manufacturing and distribution environments
Why Choose Ross Handling
Ross Handling supplies heavy-duty castor solutions engineered for strength, performance and long-term reliability. This Apex kingpinless towable castor with extended lead and ergonomic polyurethane wheel delivers controlled towing, reduced maintenance and dependable performance — making it an excellent choice for demanding industrial and logistics applications.
Technical Details
 |
Top Plate Castors |
|---|---|
|
|
Ball Journal |
|
|
317 |
|
|
50 |
|
|
-20 min to +80 max |
|
|
87A |
|
|
951 |
|
|
140 |
|
|
105 |
|
|
105 |
|
|
80 |
|
|
10 |
|
|
108 |
|
|
143 |
|
|
Orange |
|
|
100 |
|
|
Ergonomic Polyurethane |
