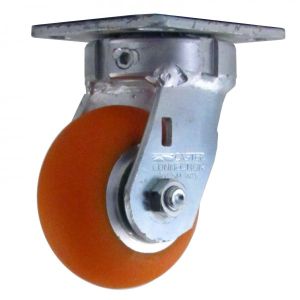

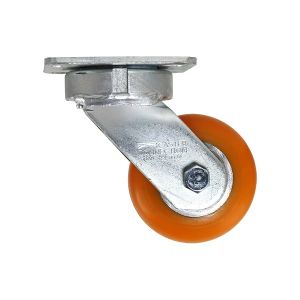

CC Apex Kingpinless Ergonomic 4" Castor with Extended Lead
SKU
CCAPEX-4S-KP-EXT
The Apex 152 mm kingpinless swivel castor with ergonomic polyurethane wheel and extended-lead top plate is designed for heavy-duty tow-line and industrial applications. Its kingpinless swivel... Read Full Description
In stock
£69.12
£57.60
- Price
- 1 + £69.12 £57.60
CAD Request
Frequently bought together
Alternative Products
Description
The Apex 152 mm kingpinless swivel castor with ergonomic polyurethane wheel and extended-lead top plate is designed for heavy-duty tow-line and industrial applications. Its kingpinless swivel head and sealed ball-journal bearings provide maintenance-free reliability and smooth, consistent swivel action under load. The ergonomic PU “donut” wheel ensures easy rolling, good floor protection and reduced operator effort — ideal for warehouse trolleys, platform trucks, mobile equipment bases, and material-handling systems requiring stability and longevity.
Key Features
-
152 mm ergonomic polyurethane wheel — smooth, floor-friendly rolling
-
Kingpinless swivel head with sealed bearings — maintenance-free and durable
-
Extended-lead top-plate mount — improved tracking and stability under tow or heavy load
-
454 kg per-castor load capacity; 1,362 kg for a 4-castor setup — suitable for heavy industrial use
-
Robust build, suitable for warehouse, automotive, manufacturing and logistics environments
Specifications
-
Castor Type: Top-plate kingpinless swivel castor (extended-lead)
-
Wheel Diameter: 152 mm
-
Wheel Material: Ergonomic polyurethane, orange tread
-
Load Capacity (per castor): 454 kg
-
Max Load Capacity (4 castors): 1,362 kg
-
Tread Width: 50 mm
-
Temperature Range: –20 °C to +80 °C
-
Tread Hardness: 87 Shore A
-
Plate Dimensions: 114 mm × 102 mm
-
Hole Centres (Length): 92 mm / 75 mm | (Hole Centres Width:) 75 mm / 67 mm
-
Plate Hole Diameter: 10 mm
-
Swivel Radius: 116 mm
-
Total Castor Height: 191 mm
Applications
-
Tow-line carts, tugged transport sets and platform trucks
-
Industrial trolleys, maintenance carts, storage racks
-
Warehouse and logistics equipment needing heavy-duty, smooth-rolling castors
-
Manufacturing or automotive workshop mobile bases and frames
-
Material-handling systems, heavy-duty carts, and industrial equipment that need stable, maintenance-free castors
Why Choose Ross Handling | Apex
Apex castors from Ross Handling are designed for demanding industrial use — combining ergonomic wheel design, heavy-duty load capability and sealed, maintenance-free swivel mechanics. This 152 mm extended-lead kingpinless model offers reliability, smooth manoeuvring and long service life — ideal for warehouses, manufacturing, logistics and any heavy-duty transport application.
Technical Details
 |
Top Plate Castors |
|---|---|
|
|
Ball Journal |
|
|
317 |
|
|
50 |
|
|
-20 min to +80 max |
|
|
87A |
|
|
951 |
|
|
114 |
|
|
102 |
|
|
92/75 |
|
|
75/67 |
|
|
10 |
|
|
108 |
|
|
143 |
|
|
Orange |
|
|
102 |
|
|
Ergonomic Polyurethane |
