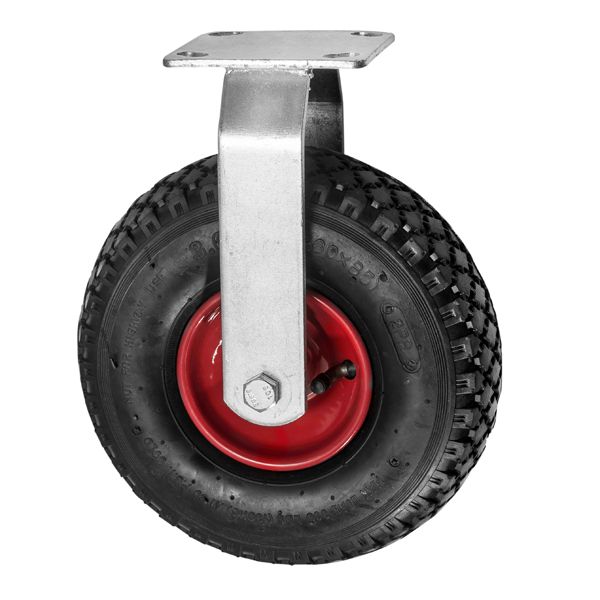

260mm Reinforced Pneumatic Fixed Castor
SKU
260-2268-PWR
This reinforced pneumatic fixed castor is designed for applications requiring smooth and cushioned movement over uneven surfaces. It features a roller bearing and a load capacity of 136 kg per castor, with a maximum load... Read Full Description
In stock
Now
£47.38
£39.48
Was
£53.84
£44.87
Was
£53.84
CAD Request
Frequently bought together
Alternative Products
Description
This reinforced pneumatic fixed castor is designed for applications requiring smooth and cushioned movement over uneven surfaces. It features a roller bearing and a load capacity of 136 kg per castor, with a maximum load capacity of 408 kg for four castors. Ensure the plate dimensions and hole centres match your existing setup before ordering.
Key Features
- Bearing Type: Roller – supports smooth rotation.
- Load Capacity Dynamic (kg): 136 – maximum load rating per castor.
- Max Load Capacity of 4 Castors: 408 kg – total load rating for four castors.
- Plate Length (mm): 115 – overall length of the mounting plate.
- Plate Width (mm): 105 – overall width of the mounting plate.
- Plate Hole Centres Length (mm): 92/76 – distance between mounting holes.
- Plate Hole Centres Width (mm): 76/67 – distance between mounting holes.
- Plate Hole Diameter: 10 mm – must match the bolt size.
- Total Castor Height: 318 mm – overall height of the castor.
- Tread Width (mm): 85 – width of the wheel tread.
- Wheel Diameter (mm): 260 – check against the existing wheel size.
- Wheel Material: Pneumatic on Pressed Steel – air-filled tyre for cushioned movement.
Applications
- Handling Equipment: Used for smooth movement over uneven surfaces.
- Industrial Trolleys: Provides cushioned transport for heavy loads.
- Warehouse Carts: Facilitates easy manoeuvrability across varied flooring.
Why Choose Ross Handling
Ross Handling is a UK-based, family-run supplier of castors, wheels and handling components, established in 1977, with UK stock, fast delivery and an experienced team available to help you choose the right parts.
Technical Details
 |
Top Plate Castors |
|---|---|
|
|
Roller |
|
|
136 |
|
|
85 |
|
|
136 |
|
|
408 |
|
|
115 |
|
|
105 |
|
|
92/76 |
|
|
76/67 |
|
|
10 |
|
|
318 |
|
|
260 |
|
|
Pneumatic on Pressed Steel |
