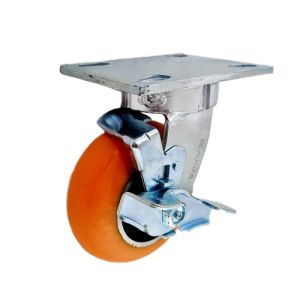

Kingpinless Braked Caster with Donut Wheel Low Rolling Resistance
SKU
CCAPEX-5S-KP-EU-SIDEBR
The Kingpinless Braked Caster with Donut Wheel Low Rolling Resistance is an essential component for various material handling applications. Featuring a robust design, it effectively addresses the need for smooth mobility and... Read Full Description
Ready for dispatch in 60 working days
£84.84
£70.70
- Price
- 1 + £84.84 £70.70
- 20 + £77.08 £64.23
CAD Request
Frequently bought together
Alternative Products
Description
The Kingpinless Braked Caster with Donut Wheel Low Rolling Resistance is an essential component for various material handling applications. Featuring a robust design, it effectively addresses the need for smooth mobility and control in environments where heavy loads are transported. With a load capacity of 362kg per castor, and a maximum load capacity of 1086kg when using four castors, it is ideal for trolleys, carts, and other wheeled equipment in warehouses, factories, and distribution centres.
Constructed with a durable ergonomic polyurethane wheel, measuring 125mm in diameter, it ensures low rolling resistance while providing excellent grip and stability. The combination of a ball journal bearing type and a hardness rating of 87A contributes to its reliable performance across a wide temperature range of -20°C to +80°C. The swivel radius of 100 degrees allows for easy manoeuvrability, making it suitable for navigating tight spaces.
Key Features
- Load Capacity: 362kg – Suitable for heavy-duty applications, ensuring safe transportation of substantial loads.
- Braked Functionality: Integrated braking system – Provides enhanced control and stability during stationary usage.
- Wheel Material: Ergonomic Polyurethane – Offers low rolling resistance and excellent floor protection.
- Temperature Range: -20°C to +80°C – Suitable for a variety of environments, maintaining performance in extreme conditions.
- Swivel Radius: 100 degrees – Facilitates easy steering and manoeuvrability in confined spaces.
- Plate Dimensions: 140mm x 105mm – Compatible with a range of mounting options for versatile installation.
Applications
- Warehouse Operations: Ideal for moving heavy loads efficiently across warehouse floors.
- Manufacturing Facilities: Facilitates the transportation of materials and products within production lines.
- Distribution Centres: Enhances the movement of goods, ensuring quick and effective logistics.
Why Choose Ross Handling
With extensive product knowledge and a commitment to dependable supply, Ross Handling is dedicated to providing quality solutions and exceptional customer support for all your material handling needs.
Technical Details
 |
Top Plate Castors |
|---|---|
|
|
Ball Bearing |
|
|
362 |
|
|
50 |
|
|
-20 min to +80 degrees celcius max |
|
|
87A |
|
|
1086kg |
|
|
140 |
|
|
105 |
|
|
105 |
|
|
80 |
|
|
10mm |
|
|
100 degrees |
|
|
165mm |
|
|
Orange |
|
|
125 |
|
|
Ergonomic Polyurethane |
