Linea Castors 65mm Braked
SKU
LS65-M10X25/BR
These 65 mm Linea braked castors with M10×25 mm threaded stems and ball journal bearings deliver smooth,... Read Full Description
In stock
£17.05
£14.21
- Price
- 1 + £17.05 £14.21
CAD Request
Frequently bought together
Alternative Products
Description

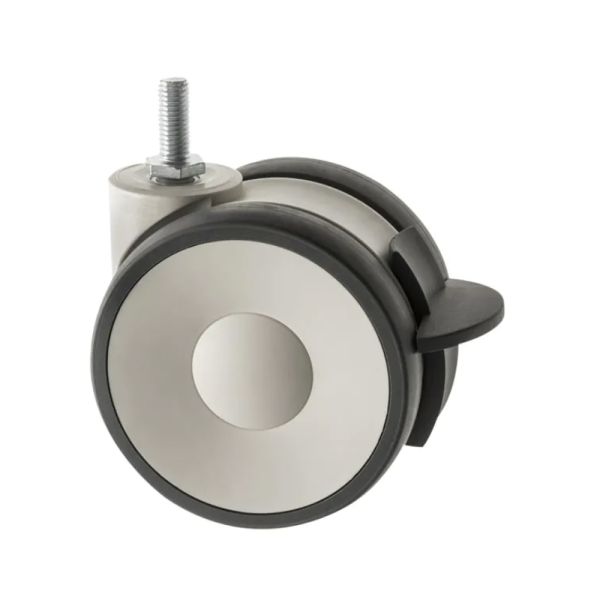

These 65 mm Linea braked castors with M10×25 mm threaded stems and ball journal bearings deliver smooth, low-resistance rolling with secure braking — ideal for furniture, equipment stands, trolleys, medical units and other mobile applications where controlled movement and dependable stopping are required. The white rubber on polypropylene wheels with 92 Shore A tread hardness offer gentle, floor-friendly rolling that protects surfaces such as wood, laminate, tile and low-pile carpet while reducing noise during use.
Ball journal bearings enhance rolling performance compared with plain bearings, providing easier manoeuvrability under load, while the twin-wheel design helps distribute weight and improve stability. The integrated brake locks both wheels in place quickly and safely, preventing unwanted movement once the item is positioned.
With a 65 mm wheel diameter, 90 kg load capacity per castor, 51 mm swivel radius and 75 mm total height, these Linea braked castors offer reliable performance, secure positioning and smooth rolling — perfectly suited to domestic, commercial and healthcare settings.
Key Features & Specifications
-
Wheel Diameter: 65 mm
-
Load Capacity: 90 kg per castor
-
Wheel Material: Rubber on polypropylene
-
Tread Hardness: 92 Shore A
-
Castor Type: Threaded stem castors with brake
-
Bearing Type: Ball journal bearings
-
Stem Size: M10×25 mm threaded stem
-
Swivel Radius: 51 mm
-
Total Height: 75 mm
-
Brake: Integrated wheel lock
-
Wheel Colour: White
-
Max Capacity (4 castors): 270 kg
Typical Applications
-
Furniture and seating with braking control
-
Utility, display and equipment trolleys
-
Medical stands and units
-
Cabinets and movable fixtures requiring lock
-
Indoor hard floors and low-pile carpet
Why Choose Ross Handling
Ross Handling offers a trusted range of specialist and furniture castors engineered for smooth rolling, strong load support and dependable braking performance. These 65 mm Linea braked castors with ball journal bearings and threaded stems provide enhanced manoeuvrability, secure stopping and everyday reliability — all backed by expert technical advice and dependable service.
Technical Details
 |
Threaded Stem Castors |
|---|---|
|
|
Ball Journal |
|
|
90 |
|
|
92 shore A |
|
|
90 |
|
|
90 |
|
|
270 |
|
|
M10X25 |
|
|
51 |
|
|
75 |
|
|
White |
|
|
65 |
|
|
Rubber on Polypropylene |
