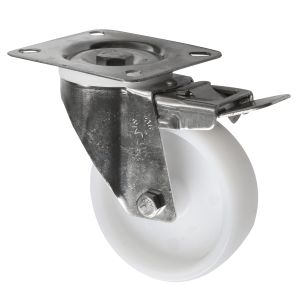

316 Stainless Steel Braked Castor with Nylon Wheel 100mm
SKU
SS-316-100-NY/SWB
The SS-316-100-NY/SWB is a premium 316 marine-grade stainless steel swivel castor fitted with a 100 mm... Read Full Description
In stock
£46.84
£39.03
- Price
- 1 + £46.84 £39.03
CAD Request
Frequently bought together
Description
The SS-316-100-NY/SWB is a premium 316 marine-grade stainless steel swivel castor fitted with a 100 mm nylon wheel and a strong, reliable brake. Designed for corrosive, wet and hygiene-critical environments, this castor is ideal for marine applications, food-processing areas, pharmaceutical equipment, and anywhere subject to regular wash-down or chemical exposure.
The white nylon wheel provides excellent strength, low rolling resistance and high wear resistance. Combined with the corrosion-proof 316 stainless steel housing, this castor delivers long service life, stability and smooth manoeuvrability — even in challenging environments.
Key Features
-
Premium 316 marine-grade stainless steel housing
-
100 mm heavy-duty nylon wheel for smooth, low-resistance rolling
-
Swivel castor with total brake for secure locking
-
Excellent resistance to water, salt, chemicals & corrosion
-
Plain bearing for reliable, low-maintenance performance
-
Suitable for cleanrooms, food-safe areas, marine use & industrial hygiene zones
Technical Specifications (SS-316-100-NY/SWB)
-
Manufacturer Part No.: SS-316-100-NY/SWB
-
Castor Type: Top plate swivel castor with brake
-
Bearing Type: Plain bearing
-
Wheel Diameter: 100 mm
-
Wheel Material: Nylon
-
Wheel Colour: White
-
Tread Width: 30 mm
-
Load Capacity (per castor): 150 kg
-
Max Load Capacity of 4 Castors: 450 kg
-
Temperature Range: –40 °C to +80 °C
-
Total Castor Height: 128 mm
-
Swivel Radius: 62 mm
-
Top Plate Length: 100 mm
-
Top Plate Width: 85 mm
-
Material (Bracket & Housing): 316 Stainless Steel
-
Wheel Type: Nylon hard wheel — ideal for smooth, clean floors
-
Series / Code: Marine Grade 316 Stainless Steel, Nylon Wheel
Applications
-
Marine & coastal environments
-
Food-processing plants, bakeries & hygienic wash-down areas
-
Pharmaceutical & laboratory equipment
-
Stainless steel trolleys & industrial carts
-
Cold rooms and chilled storage
-
Chemical, wet or corrosive industrial settings
Why Choose Ross Handling
Ross Handling supplies premium-grade castors engineered for harsh, corrosive and hygiene-sensitive environments. The SS-316-100-NY/SWB combines marine-grade stainless steel with a durable nylon wheel and dependable braking performance — delivering long-lasting reliability in food, marine, medical and industrial applications.
Technical Details
 |
Top Plate Castors |
|---|---|
|
|
Plain |
|
|
150 |
|
|
SS-316-100-NY/SWB |
|
|
30 |
|
|
-40 min to + 80 max |
|
|
150 |
|
|
450 |
|
|
100 |
|
|
85 |
|
|
80 |
|
|
60 |
|
|
9 |
|
|
62 |
|
|
128 |
|
|
White |
|
|
100 |
|
|
Nylon |
