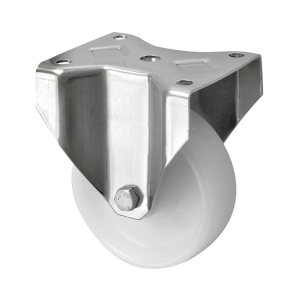

316 Stainless Steel Fixed Castor with Nylon Wheel 80mm
SKU
SF-316-80-NY
This marine-grade 316 stainless steel fixed castor is built for harsh, corrosive and hygienic environments where superior material performance... Read Full Description
In stock
£28.99
£24.16
- Price
- 1 + £28.99 £24.16
CAD Request
Frequently bought together
Description
This marine-grade 316 stainless steel fixed castor is built for harsh, corrosive and hygienic environments where superior material performance is essential. Fitted with an 80 mm white nylon wheel, it offers low rolling resistance, excellent wear life and strong chemical resistance — ideal for food-production, pharmaceutical facilities, marine use and wash-down areas.
Built with genuine 316 stainless steel, this castor provides exceptional resistance to saltwater, chemicals and aggressive cleaning agents, outperforming standard 304 stainless steel in corrosive environments. With a 100 kg load capacity and plain bearing, it delivers reliable, smooth rolling with minimal maintenance.
Its compact 107 mm total height, 30 mm tread width, and industry-standard plate dimensions make it suitable for small stainless-steel trolleys, compact machinery, and mobile fabrications requiring a fixed, highly durable castor solution.
Key Features
-
316 marine-grade stainless steel – maximum corrosion resistance, ideal for marine, coastal and hygienic environments
-
80 mm nylon wheel – smooth rolling, hard-wearing and chemical-resistant
-
100 kg load capacity – reliable performance for light-to-medium duty applications
-
Plain bearing – simple, dependable and maintenance-friendly
-
30 mm tread width – provides stability in compact systems
-
Temperature range –40°C to +80°C – suitable for chilled, ambient and warm environments
-
Low overall height (107 mm) – ideal for low-profile stainless-steel equipment
Specifications
-
Castor Type: Fixed, Top Plate
-
Bearing Type: Plain
-
Load Capacity (Dynamic): 100 kg
-
Max Load on 4 Castors: 300 kg
-
Wheel Diameter: 80 mm
-
Tread Width: 30 mm
-
Wheel Material: Nylon
-
Wheel Colour: White
-
Temperature Range: –40°C to +80°C
-
Total Castor Height: 107 mm
-
Plate Length: 100 mm
-
Plate Width: 85 mm
-
Hole Centres (Length): 80 mm
-
Hole Centres (Width): 60 mm
-
Hole Diameter: 9 mm
-
Manufacturer Part Number: SF-316-80-NY
Applications
Ideal for use in:
-
Marine, coastal or saltwater environments
-
Food-processing and hygienic production areas
-
Pharmaceutical, clean-room and laboratory equipment
-
Stainless-steel trolleys, frameworks and compact mobile units
-
Industrial applications requiring superior corrosion resistance over standard stainless steel
Why Choose Ross Handling
Ross Handling supplies castors made from true marine-grade 316 stainless steel, ensuring unmatched corrosion protection, hygiene performance and long-term durability. This 80 mm fixed castor provides smooth nylon rolling, robust load capacity and premium-grade material construction, making it a trusted choice for environments where reliability is critical.
Technical Details
 |
Top Plate Castors |
|---|---|
|
|
Plain |
|
|
100 |
|
|
SF-316-80-NY |
|
|
30 |
|
|
-40 min to + 80 max |
|
|
100 |
|
|
300 |
|
|
100 |
|
|
85 |
|
|
80 |
|
|
60 |
|
|
9 |
|
|
107 |
|
|
White |
|
|
80 |
|
|
Nylon |
