200mm Heavy Duty Jacking Castor Swivel Cast Iron Wheel 200mm Lift

RH8-200-CIB

This heavy duty jacking castor with a 200mm heavy duty cast iron wheel can lift loads an additional 200mm in vertica... Read More

£186.99 (excl. VAT) Incl. VAT: £224.39
Price
1+ £186.99 (excl. VAT) £224.39 7 £179.90 (excl. VAT) £215.88

With this product, you earn 225 loyalty point(s). 225 points = £11.25.

Description

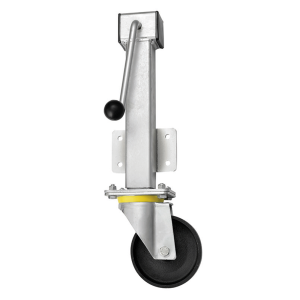

This heavy duty jacking castor with a 200mm heavy duty cast iron wheel can lift loads an additional 200mm in vertical height. These ingenious jacking castors have a side mounted plate for attachment and a crank handle for ease of lifting movement.

Technical Details

Bearing Type Bearing Type Roller
Bolt Hole Size (mm) Bolt Hole Size (mm) 10
Colour Colour No
Jacking Unit Extension Height Max 200m 850
Jacking Unit Height From Plate Lower Bolt Hole 339
Load Capacity (kg) Load Capacity (kg) 600
Max Load Capacity for 2 Jacking Castors 600
Min Jacking Unit Extension Height 650
Operating Method Handle
Plate Dimension Length (mm) Plate Dimension Length (mm) 150
Plate Dimension Width (mm) Plate Dimension Width (mm) 100
Plate Hole Centres Length (mm) Plate Hole Centres Length (mm) 110
Plate Hole Centres Width (mm) Plate Hole Centres Width (mm) 60
Plate Hole Diameter Plate Hole Diameter 11
Product Type Product Type Jacking Castors
Swivel Radius Swivel Radius 154
Technical PDF Technical PDF RH8-200-CIB.pdf
Thread Material Thread Material No
Total Castor Height Total Castor Height 240 + 200
Total Height to Plate Lower Bolt Hole 311
Tread Width (mm) Tread Width (mm) 50
Wheel Centre Wheel Centre Cast Iron
Wheel Colour Wheel Colour Cast Iron
Wheel Diameter(mm) Wheel Diameter(mm) 200
Wheel Material Wheel Material Cast Iron
