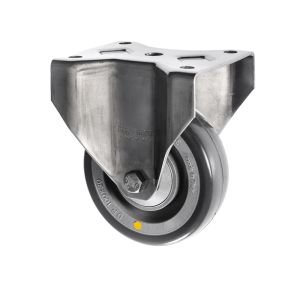

Stainless Steel Castor Electro Conductive 200mm Fixed Wheel
SKU
SF-200-HPC
This heavy-duty stainless-steel fixed castor is engineered for environments where both durability and electrostatic protection are essential. Fitted with a Read Full Description
In stock
£60.28
£50.23
- Price
- 1 + £60.28 £50.23
CAD Request
Frequently bought together
Alternative Products
Description
This heavy-duty stainless-steel fixed castor is engineered for environments where both durability and electrostatic protection are essential. Fitted with a 200 mm electrically conductive rubber wheel, it safely dissipates static charge, protecting sensitive electronic equipment in manufacturing, assembly and clean-room environments.
With a 400 kg load capacity, robust stainless-steel body and –40°C to +80°C temperature resistance, this castor is built for demanding industrial applications. The 95 Shore A tread provides firm, stable rolling with low deformation under load, supported by a smooth-running ball journal bearing for consistent, controlled manoeuvrability.
Key Features
-
200 mm wheel diameter – smooth rolling and effective clearance for industrial floors
-
Electrically conductive rubber wheel – safely dissipates static to protect sensitive equipment
-
400 kg load capacity – suitable for heavy-duty machinery, trolleys and production systems
-
Stainless steel construction – ideal for hygienic, wash-down and corrosion-prone environments
-
High-temperature performance (-40°C to +80°C) – reliable in cold stores, ambient areas and warm process zones
-
95 Shore A tread hardness – firm, stable and long-wearing for precision handling
-
50 mm tread width – increased stability and load support
-
Ball journal bearing – smooth rolling and consistent performance under load
Specifications
-
Castor Type: Fixed, Top Plate
-
Bearing Type: Ball Journal
-
Load Capacity: 400 kg
-
Manufacturer Part Number: TSX7 HPC 200/50 P3 FA 7012
-
Wheel Diameter: 200 mm
-
Tread Width: 50 mm
-
Wheel Material: Electrically Conductive Rubber
-
Tread Hardness: 95 Shore A
-
Temperature Range: –40°C to +80°C
-
Wheel Colour: Grey
-
Total Height: 240 mm
-
Plate Length: 140 mm
-
Plate Width: 110 mm
-
Hole Centres (Length): 105 mm
-
Hole Centres (Width): 80 / 75 mm
-
Hole Diameter: 10 mm
-
Max Load on 4 Castors: 1200 kg
Applications
Ideal for use in:
-
Electronics manufacturing, PCB handling and static-sensitive environments
-
Cleanrooms, laboratories and precision assembly areas
-
Pharmaceutical and hygienic production facilities
-
Stainless-steel trolleys, inspection carts and instrument platforms
-
Industrial environments where ESD protection and corrosion resistance are required
Why Choose Ross Handling
Ross Handling supplies premium stainless-steel ESD castors designed for high performance, hygiene and long-term durability. This European-manufactured specification offers reliable static dissipation, strong load handling and excellent temperature resistance. The 200 mm conductive wheel delivers stable, controlled rolling — making it a trusted solution for sensitive industrial and electronic applications.
Technical Details
 |
Top Plate Castors |
|---|---|
|
|
Ball Journal |
|
|
400 |
|
|
TSX7 HPC 200/50 P3 FA 7012 |
|
|
50 |
|
|
-40 min to +80 max |
|
|
95 shore A |
|
|
1200 |
|
|
140 |
|
|
110 |
|
|
105 |
|
|
80/75 |
|
|
10 |
|
|
240 |
|
|
Grey |
|
|
200 |
|
|
Electrically Conductive Rubber |
