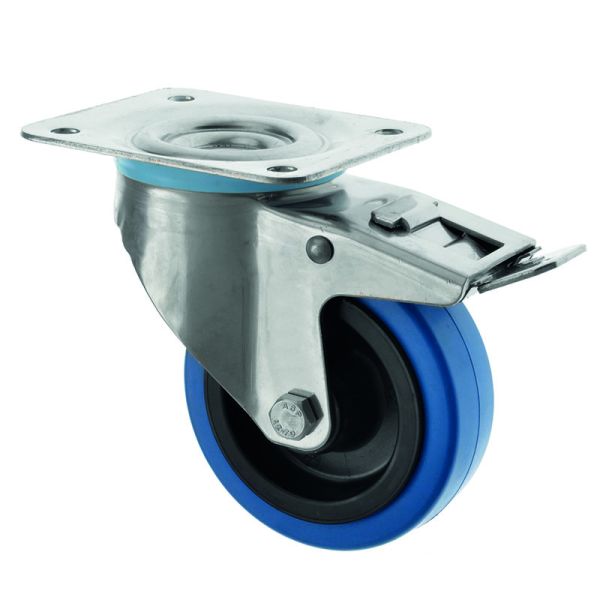

100mm Stainless Steel Blue Rubber Castor with Foot Brake 160kg
SKU
SS-100-RNB/SWB
This stainless-steel swivel castor with integrated brake is designed for smooth, quiet... Read Full Description
In stock
£33.32
£27.77
- Price
- 1 + £33.32 £27.77
CAD Request
Frequently bought together
Alternative Products
Description
This stainless-steel swivel castor with integrated brake is designed for smooth, quiet mobility, secure stopping, and excellent floor protection in industrial and commercial environments. Fitted with a 100 mm blue rubber wheel on a polypropylene core, it provides shock absorption, reduced vibration and reliable grip — ideal for trolleys, carts, service equipment and material-handling applications where controlled movement is essential.
With a 160 kg load capacity and roller bearing, this castor delivers efficient, low-friction rolling and dependable swivel performance under continuous use. The A70 tread hardness offers a balanced combination of grip and durability, while the 29 mm tread width ensures stable rolling. A 128 mm total height and generous 242 mm swivel radius allow smooth manoeuvrability while maintaining positive braking when stationary.
Manufactured with a stainless-steel housing and top plate, this castor offers strong corrosion resistance, making it suitable for indoor, commercial and light industrial environments.
Key Features
-
100 mm blue rubber wheel — quiet, cushioned rolling with excellent floor protection
-
Integrated brake — secure locking for stability and safety
-
Stainless-steel housing — corrosion-resistant and durable
-
160 kg load capacity — strong performance for medium-duty applications
-
Roller bearing — smooth, low-friction rotation
-
A70 tread hardness — balanced grip with long wear life
-
29 mm tread width — stable rolling footprint
-
–20 °C to +80 °C operating range — suitable for a wide range of indoor environments
Specifications
-
Castor Type: Swivel Braked, Top Plate
-
Bearing Type: Roller Bearing
-
Load Capacity: 160 kg
-
Dynamic Load Capacity: 160 kg
-
Max Load on 4 Castors: 480 kg
-
Wheel Diameter: 100 mm
-
Tread Width: 29 mm
-
Wheel Material: Rubber on Polypropylene
-
Wheel Colour: Blue
-
Tread Hardness: A70
-
Temperature Range: –20 °C to +80 °C
-
Total Castor Height: 128 mm
-
Swivel Radius: 242 mm
-
Plate Length: 105 mm
-
Plate Width: 85 mm
-
Hole Centres (Length): 80 mm
-
Hole Centres (Width): 60 mm
-
Hole Diameter: 8 mm
Applications
Ideal for use in:
-
Industrial and workshop trolleys
-
Service carts and mobile equipment
-
Commercial material-handling systems
-
Retail fixtures and display units
-
Environments requiring quiet rolling, floor protection and secure braking
Why Choose Ross Handling
Ross Handling supplies high-quality stainless-steel castors engineered for durability, smooth performance and corrosion resistance. This 100 mm swivel braked castor with a blue rubber wheel delivers quiet operation, secure brake control and strong load handling, making it a dependable solution for commercial and industrial mobility applications.
Technical Details
 |
Top Plate Castors |
|---|---|
|
|
Roller Bearing |
|
|
160 |
|
|
29 |
|
|
-20 min to +80 max |
|
|
A70 |
|
|
160 |
|
|
480 |
|
|
105 |
|
|
85 |
|
|
80 |
|
|
60 |
|
|
8 |
|
|
242 |
|
|
128 |
|
|
Blue |
|
|
100 |
|
|
Rubber on Polypropylene |
