125mm Stainless Steel Castorwith Brake Top Plate Fitting 180kg
SKU
SS-125-RNB/SWB
This stainless-steel swivel castor with integrated brake is engineered for smooth, quiet... Read Full Description
In stock
£38.40
£32.00
- Price
- 1 + £38.40 £32.00
CAD Request
Frequently bought together
Alternative Products
Description

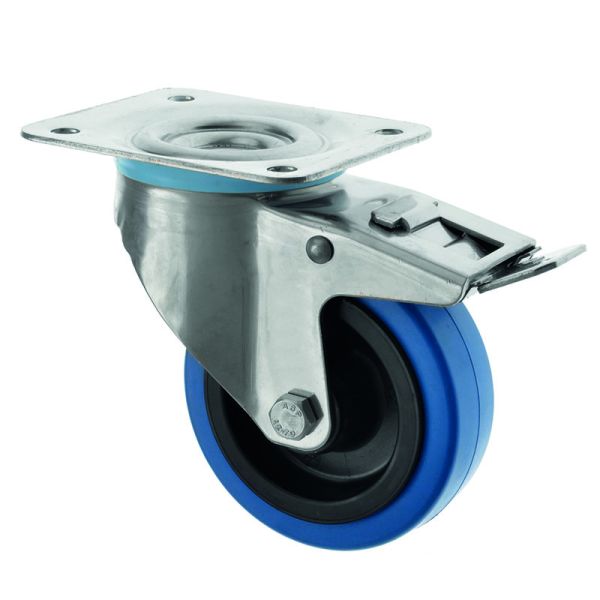

This stainless-steel swivel castor with integrated brake is engineered for smooth, quiet mobility, secure stopping, and excellent floor protection in commercial and industrial environments. Fitted with a 125 mm blue rubber wheel on a polypropylene core, it delivers shock absorption, reduced vibration and dependable grip — ideal for trolleys, carts, workstations and material-handling equipment where controlled movement is essential.
With a 180 kg load capacity and roller bearing, this castor provides efficient, low-friction rolling and reliable swivel performance under continuous use. The A64 tread hardness offers a slightly softer rubber profile for enhanced vibration damping and surface protection, while the 34 mm tread width ensures a stable rolling footprint. A 155 mm total height and 135 mm swivel radius allow smooth manoeuvrability with confident brake engagement.
Manufactured with a stainless-steel housing and top plate, this castor also offers strong corrosion resistance, making it suitable for indoor, commercial and light industrial environments where durability and hygiene are important.
Key Features
-
125 mm blue rubber wheel — quiet, cushioned rolling with excellent floor protection
-
Integrated brake — secure locking for stability and safety
-
Stainless-steel housing — corrosion-resistant and durable
-
180 kg load capacity — strong performance for medium-duty applications
-
Roller bearing — smooth, low-friction rotation
-
A64 tread hardness — softer rubber for vibration reduction and surface care
-
34 mm tread width — stable footprint and controlled movement
-
–20 °C to +80 °C operating range — suitable for a wide range of indoor environments
Specifications
-
Castor Type: Swivel Braked, Top Plate
-
Bearing Type: Roller Bearing
-
Load Capacity: 180 kg
-
Dynamic Load Capacity: 180 kg
-
Max Load on 4 Castors: 540 kg
-
Wheel Diameter: 125 mm
-
Tread Width: 34 mm
-
Wheel Material: Rubber on Polypropylene
-
Wheel Colour: Blue
-
Tread Hardness: A64
-
Temperature Range: –20 °C to +80 °C
-
Total Castor Height: 155 mm
-
Swivel Radius: 135 mm
-
Plate Length: 105 mm
-
Plate Width: 85 mm
-
Hole Centres (Length): 80 mm
-
Hole Centres (Width): 60 mm
-
Hole Diameter: 8 mm
Applications
Ideal for use in:
-
Industrial and workshop trolleys
-
Service carts and transport platforms
-
Commercial material-handling equipment
-
Retail fixtures and mobile displays
-
Environments requiring quiet rolling, floor protection and secure braking
Why Choose Ross Handling
Ross Handling supplies high-quality stainless-steel castors engineered for durability, smooth performance and corrosion resistance. This 125 mm swivel braked castor with a blue rubber wheel delivers quiet operation, secure brake control and strong load handling, making it a trusted solution for commercial and industrial mobility applications.
Technical Details
 |
Top Plate Castors |
|---|---|
|
|
Roller Bearing |
|
|
180 |
|
|
34 |
|
|
-20 min to +80 max |
|
|
A64 |
|
|
180 |
|
|
540 |
|
|
105 |
|
|
85 |
|
|
80 |
|
|
60 |
|
|
8 |
|
|
135 |
|
|
155 |
|
|
Blue |
|
|
125 |
|
|
Rubber on Polypropylene |
