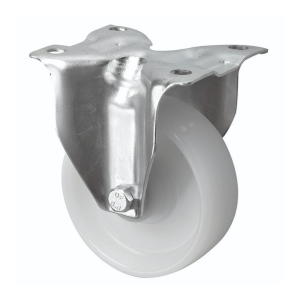

100mm Fixed Nylon Caster Wheel 270kg Load Capacity100mm Fixed Nylon Caster Wheel 270kg Load Capacity
Move your mouse over image or click to enlarge
100mm Fixed Nylon Caster Wheel 270kg Load Capacity 100-3368-NYB CAD Drawing
  • Image
  • 2D Technical Drawing

100mm Fixed Nylon Caster Wheel 270kg Load Capacity


100mm 4" fixed castors are made of a zinc plated housing which ensures the castosr are robust and suitable for a variety of environments. The fixed castors, with the w... Read More

In Stock
£6.68 (excl. VAT) Incl. VAT: £8.02
1+ £6.68 (excl. VAT) £8.01 20 £5.75 (excl. VAT) £6.89 50 £5.45 (excl. VAT) £6.54 100 £5.25 (excl. VAT) £6.30

With this product, you earn 9 loyalty point(s). 9 points = £0.45.


100mm 4" fixed castors are made of a zinc plated housing which ensures the castosr are robust and suitable for a variety of environments. The fixed castors, with the white nylon wheel is strong robust and durable and suitable for moving machinery and equipment. The white nylon wheel contains roller bearings making it easier to move whilst maintaining core strength. Fixed castors can be teamed up with swivelling castors and braked castors for maximum control when moving.

Technical Details

Bearing Type Bearing Type Roller
Colour Colour No
Hardness of Tread Hardness of Tread D75
Load Capacity (kg) Load Capacity (kg) 270
Manufacturer Part No. TSZ7 NSR 100/35 P2 FA
Max Load Capacity of 4 Castors Max Load Capacity of 4 Castors 810
Plate Dimension Length (mm) Plate Dimension Length (mm) 101
Plate Dimension Width (mm) Plate Dimension Width (mm) 85
Plate Hole Centres Length (mm) Plate Hole Centres Length (mm) 80/77
Plate Hole Centres Width (mm) Plate Hole Centres Width (mm) 60
Plate Hole Diameter Plate Hole Diameter 8
Product Type Product Type Top Plate Castors
Technical PDF Technical PDF 100-3368-NYB_1.pdf
Temperature Range Temperature Range -40 min to +80 max
Thread Material Thread Material No
Total Castor Height Total Castor Height 128
Tread Width (mm) Tread Width (mm) 34
Wheel Centre Wheel Centre White Polyamide
Wheel Colour Wheel Colour White
Wheel Diameter(mm) Wheel Diameter(mm) 100
Wheel Material Wheel Material Nylon

Delivery & Returns


Delivery Charges - Average delivery £4.70


We have teamed up with FedEx and DPD Interlink to deliver our products nationally and worldwide. Our trackable consignments, and signed for service ensures the order gets to you in the required time, hassle free.

As our products can be bulky we have a variety of delivery charges based upon the weight of your overall order. You will be shown delivery options at the checkout. For a more detailed view of our delivery charges please visit our Delivery and Returns page

You can order online quickly and easily for both UK and EU destination, and your delivery charge will be shown to you at checkout. If your order exceeds our weight for online orders you will be asked to contact us directly to get a pallet delivery quote.


ServiceWeight - (kg's)Cost £'s

Collection In Person



Sack Trucks Trolleys and Steps



2 Day - Express Pack Light

Up to 1kg


2 Day Express Pack Medium

Up to 4kg


Next Working Day Service

Up to 25kg


2 Day - Standard Service

4kg to 25kg


Next Day - Pre 12pm

Up to 25kg


Next Day - Pre 10.30am

Up to 25kg


Saturday - Delivery  Service

Up to 25kg


Highlands and Islands

Up to 25kg

From £13.50 - £45.00

Northern & Southern Ireland

Up to 50kg

From £13.00 - £39.00

Inside EU

Up to 60kg

From €14.00 - €68.00

Outside EU

Up to 60kg

Contact us for a Quote



Returns and Refunds

We have a no quibble returns and refund policy. You have 30 days to return any item for a full refund or exchange, provided it is in its original, unused, saleable condition and repackaged in original packaging.

To return goods simply download this Returns form

Returns charges are not covered by the Company, unless the goods are faulty. If the goods are faulty please call our Customer Services on 0116 2764987 or 00 44 116 2764987

For Returns of Sack Trucks, Trolleys and Mobile Steps please refer to our detailed Terms and Conditions


Got a Question to Ask?

Use this form to submit your question. Question will be displayed after moderation

Question Written by: Paul Taylor . August 10th 2018
What is the definition of Load Capacity?
Is it the failure load, or the safe working load?
If it is the safe wirking load, what is the load factor?
Answer Written by: Ross Handling
Hi Paul

When we say load capacity / load rating we are referring to the safe working load of each castor. This is not the castors failing point as there is a margin of safety in the figure. What is important to use as a general safe dynamic working load when mounting 4 castors per application is to use the calculation of 3 f the 4 castors. For example if a castor has a load capacity of 100kg and you are mounting 4 castors to the unit, we would say that the safe working load is 300kg. This is to take into consideration gradient, uneven distribution of the load or a 3 point contact in moving the application.

Please do get in touch with me if i can help further with this question.



Was this answer helpful?

Measuring Advice

We have a range of quick reference guides on how to measure and choose the correct product.  Take a look at our Measuring guide page for more information and advice.

Alternatively if you would like to speak to our friendly team, please do call us on 0116 2764987
